Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: listPrElt
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines a list.

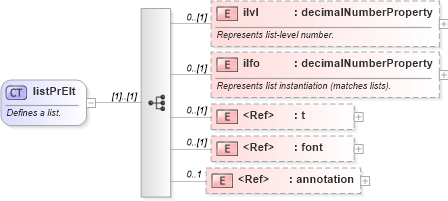

Collapse XSD Schema Diagram:
Drilldown into annotation in schema aml_xsd Drilldown into font in schema wordnetaux_xsd Drilldown into t in schema wordnetaux_xsd Drilldown into ilfo in schema wordnet_xsd Drilldown into ilvl in schema wordnet_xsdXSD Diagram of listPrElt in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="listPrElt">
    <xsd:annotation>
        <xsd:documentation>Defines a list.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ilvl" type="decimalNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents list-level number.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ilfo" type="decimalNumberProperty" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Represents list instantiation (matches lists).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="wx:t" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The textual representation of this list level.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="wx:font" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>The font of the list level.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="aml:annotation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Revision marking of these list properties.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ilvl W:ilvl 0 (1)
ilfo W:ilfo 0 (1)
t wx:t 0 (1)
font wx:font 0 (1)
annotation aml:annotation 0 1
Collapse Derivation Tree:
Collapse References:
W:listPr
