Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: menu
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

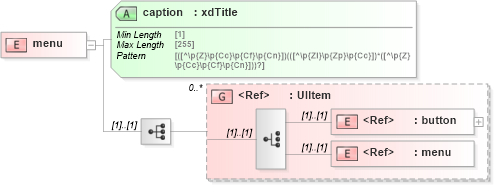

Collapse XSD Schema Diagram:
Drilldown into menu in schema sd_xsd Drilldown into button in schema sd_xsd Drilldown into UIItem in schema sd_xsd Drilldown into caption in schema sd_xsdXSD Diagram of menu in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="menu">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:group ref="xsf:UIItem" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="caption" type="xsf:xdTitle" use="required" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
button xsf:button (1) (1)
menu xsf:menu (1) (1)
<xs:group> xsf:UIItem 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
caption xsf:caption Required
