Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: menuArea
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

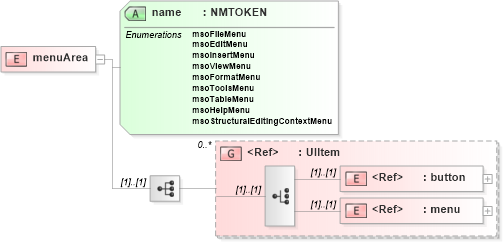

Collapse XSD Schema Diagram:
Drilldown into menu in schema sd_xsd Drilldown into button in schema sd_xsd Drilldown into UIItem in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of menuArea in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="menuArea">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:group ref="xsf:UIItem" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="name" use="required">
            <xsd:simpleType>
                <xsd:restriction base="xsd:NMTOKEN">
                    <xsd:enumeration value="msoFileMenu" />
                    <xsd:enumeration value="msoEditMenu" />
                    <xsd:enumeration value="msoInsertMenu" />
                    <xsd:enumeration value="msoViewMenu" />
                    <xsd:enumeration value="msoFormatMenu" />
                    <xsd:enumeration value="msoToolsMenu" />
                    <xsd:enumeration value="msoTableMenu" />
                    <xsd:enumeration value="msoHelpMenu" />
                    <xsd:enumeration value="msoStructuralEditingContextMenu" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
button xsf:button (1) (1)
menu xsf:menu (1) (1)
<xs:group> xsf:UIItem 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Required
