Definition Type: ComplexType
Name: pictureType
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines a picture.
Collapse XSD Schema Diagram:

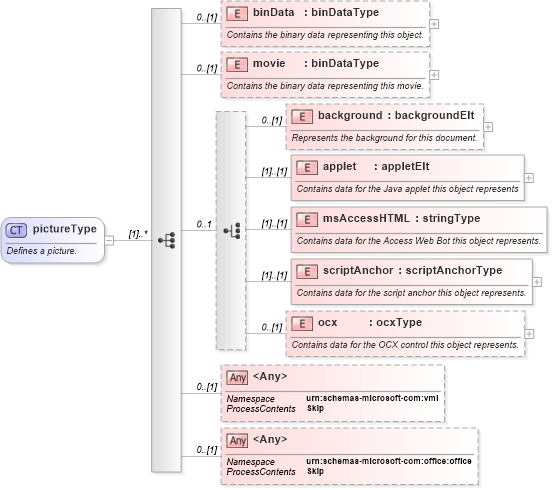

Drilldown into ocx in schema wordnet_xsd Drilldown into scriptAnchor in schema wordnet_xsd Drilldown into msAccessHTML in schema wordnet_xsd Drilldown into applet in schema wordnet_xsd Drilldown into background in schema wordnet_xsd Drilldown into movie in schema wordnet_xsd Drilldown into binData in schema wordnet_xsdXSD Diagram of pictureType in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="pictureType">
    <xsd:annotation>
        <xsd:documentation>Defines a picture.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence maxOccurs="unbounded">
        <xsd:element name="binData" type="binDataType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains the binary data representing this object.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="movie" type="binDataType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains the binary data representing this movie.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0" maxOccurs="1">
            <xsd:element name="background" minOccurs="0" type="backgroundElt">
                <xsd:annotation>
                    <xsd:documentation>Represents the background for this document.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="applet" type="appletElt">
                <xsd:annotation>
                    <xsd:documentation>Contains data for the Java applet this object represents</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="msAccessHTML" type="stringType">
                <xsd:annotation>
                    <xsd:documentation>Contains data for the Access Web Bot this object represents.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="scriptAnchor" type="scriptAnchorType">
                <xsd:annotation>
                    <xsd:documentation>Contains data for the script anchor this object represents.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ocx" type="ocxType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Contains data for the OCX control this object represents.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:any processContents="skip" namespace="urn:schemas-microsoft-com:vml" minOccurs="0">
        </xsd:any>
        <xsd:any processContents="skip" namespace="urn:schemas-microsoft-com:office:office" minOccurs="0">
        </xsd:any>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
binData W:binData 0 (1)
movie W:movie 0 (1)
background W:background 0 (1)
applet W:applet (1) (1)
msAccessHTML W:msAccessHTML (1) (1)
scriptAnchor W:scriptAnchor (1) (1)
ocx W:ocx 0 (1)
<xs:any> Allowed namespace: 'urn:schemas-microsoft-com:vml' 0 (1)
<xs:any> Allowed namespace: 'urn:schemas-microsoft-com:office:office' 0 (1)
Collapse Derivation Tree:
Collapse References:
W:bgPictW:pict, W:pict,
