Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: PivotField
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:PivotFieldType
Containing Schema: excel.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Contains information about a PivotField.

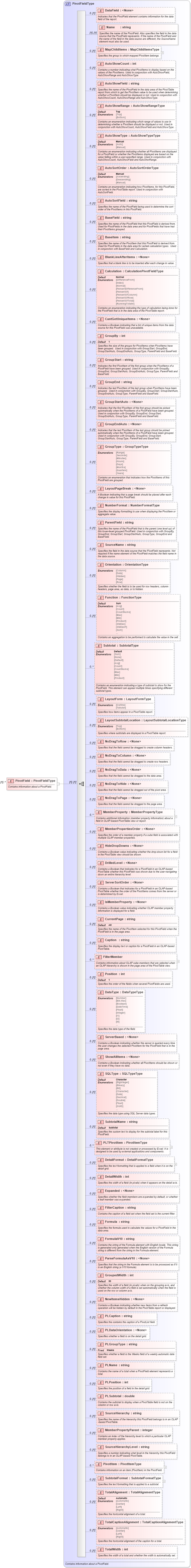

Collapse XSD Schema Diagram:
Drilldown into TotalWidth in schema excel_xsd Drilldown into TotalCaptionAlignment in schema excel_xsd Drilldown into TotalAlignment in schema excel_xsd Drilldown into SubtotalFormat in schema excel_xsd Drilldown into PivotItem in schema excel_xsd Drilldown into SourceHierarchyLevel in schema excel_xsd Drilldown into MemberPropertyParent in schema excel_xsd Drilldown into SourceHierarchy in schema excel_xsd Drilldown into PLSubtotal in schema excel_xsd Drilldown into PLPosition in schema excel_xsd Drilldown into PLName in schema excel_xsd Drilldown into PLGroupType in schema excel_xsd Drilldown into PLDataOrientation in schema excel_xsd Drilldown into PLCaption in schema excel_xsd Drilldown into NewItemsHidden in schema excel_xsd Drilldown into GroupedWidth in schema excel_xsd Drilldown into ParseFormulaAsV10 in schema excel_xsd Drilldown into FormulaV10 in schema excel_xsd Drilldown into Formula in schema excel_xsd Drilldown into FilterCaption in schema excel_xsd Drilldown into Expanded in schema excel_xsd Drilldown into DetailWidth in schema excel_xsd Drilldown into DetailFormat in schema excel_xsd Drilldown into PLTPivotItem in schema excel_xsd Drilldown into SubtotalName in schema excel_xsd Drilldown into SQLType in schema excel_xsd Drilldown into ShowAllItems in schema excel_xsd Drilldown into ServerBased in schema excel_xsd Drilldown into DataType in schema excel_xsd Drilldown into Position in schema excel_xsd Drilldown into FilterMember in schema excel_xsd Drilldown into Caption in schema excel_xsd Drilldown into CurrentPage in schema excel_xsd Drilldown into IsMemberProperty in schema excel_xsd Drilldown into ServerSortOrder in schema excel_xsd Drilldown into DrilledLevel in schema excel_xsd Drilldown into HideDropDowns in schema excel_xsd Drilldown into MemberPropertiesOrder in schema excel_xsd Drilldown into MemberProperty in schema excel_xsd Drilldown into NoDragToPage in schema excel_xsd Drilldown into NoDragToHide in schema excel_xsd Drilldown into NoDragToData in schema excel_xsd Drilldown into NoDragToColumn in schema excel_xsd Drilldown into NoDragToRow in schema excel_xsd Drilldown into LayoutSubtotalLocation in schema excel_xsd Drilldown into LayoutForm in schema excel_xsd Drilldown into Subtotal in schema excel_xsd Drilldown into Function in schema excel_xsd Drilldown into Orientation in schema excel_xsd Drilldown into SourceName in schema excel_xsd Drilldown into ParentField in schema excel_xsd Drilldown into NumberFormat in schema excel_xsd Drilldown into LayoutPageBreak in schema excel_xsd Drilldown into GroupType in schema excel_xsd Drilldown into GroupEndAuto in schema excel_xsd Drilldown into GroupStartAuto in schema excel_xsd Drilldown into GroupEnd in schema excel_xsd Drilldown into GroupStart in schema excel_xsd Drilldown into GroupBy in schema excel_xsd Drilldown into CantGetUniqueItems in schema excel_xsd Drilldown into Calculation in schema excel_xsd Drilldown into BlankLineAfterItems in schema excel_xsd Drilldown into BaseItem in schema excel_xsd Drilldown into BaseField in schema excel_xsd Drilldown into AutoSortField in schema excel_xsd Drilldown into AutoSortOrder in schema excel_xsd Drilldown into AutoShowType in schema excel_xsd Drilldown into AutoShowRange in schema excel_xsd Drilldown into AutoShowField in schema excel_xsd Drilldown into AutoShowCount in schema excel_xsd Drilldown into MapChildItems in schema excel_xsd Drilldown into Name in schema excel_xsd Drilldown into DataField in schema excel_xsd Drilldown into PivotFieldType in schema excel_xsdXSD Diagram of PivotField in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="PivotField" type="PivotFieldType" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Contains information about a PivotField.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DataField x:DataField 0 (1)
Name x:Name (1) (1)
MapChildItems x:MapChildItems 0 (1)
AutoShowCount x:AutoShowCount 0 (1)
AutoShowField x:AutoShowField 0 (1)
AutoShowRange x:AutoShowRange 0 (1)
AutoShowType x:AutoShowType 0 (1)
AutoSortOrder x:AutoSortOrder 0 (1)
AutoSortField x:AutoSortField 0 (1)
BaseField x:BaseField 0 (1)
BaseItem x:BaseItem 0 (1)
BlankLineAfterItems x:BlankLineAfterItems 0 (1)
Calculation x:Calculation 0 (1)
CantGetUniqueItems x:CantGetUniqueItems 0 (1)
GroupBy x:GroupBy 0 (1)
GroupStart x:GroupStart 0 (1)
GroupEnd x:GroupEnd 0 (1)
GroupStartAuto x:GroupStartAuto 0 (1)
GroupEndAuto x:GroupEndAuto 0 (1)
GroupType x:GroupType 0 (1)
LayoutPageBreak x:LayoutPageBreak 0 (1)
NumberFormat x:NumberFormat 0 (1)
ParentField x:ParentField 0 (1)
SourceName x:SourceName 0 (1)
Orientation x:Orientation 0 (1)
Function x:Function 0 (1)
Subtotal x:Subtotal 0 unbounded
LayoutForm x:LayoutForm 0 (1)
LayoutSubtotalLocation x:LayoutSubtotalLocation 0 (1)
NoDragToRow x:NoDragToRow 0 (1)
NoDragToColumn x:NoDragToColumn 0 (1)
NoDragToData x:NoDragToData 0 (1)
NoDragToHide x:NoDragToHide 0 (1)
NoDragToPage x:NoDragToPage 0 (1)
MemberProperty x:MemberProperty 0 unbounded
MemberPropertiesOrder x:MemberPropertiesOrder 0 (1)
HideDropDowns x:HideDropDowns 0 (1)
DrilledLevel x:DrilledLevel 0 (1)
ServerSortOrder x:ServerSortOrder 0 (1)
IsMemberProperty x:IsMemberProperty 0 (1)
CurrentPage x:CurrentPage 0 (1)
Caption x:Caption 0 (1)
FilterMember x:FilterMember 0 unbounded
Position x:Position 0 (1)
DataType x:DataType 0 (1)
ServerBased x:ServerBased 0 (1)
ShowAllItems x:ShowAllItems 0 (1)
SQLType x:SQLType 0 (1)
SubtotalName x:SubtotalName 0 (1)
PLTPivotItem x:PLTPivotItem 0 unbounded
DetailFormat x:DetailFormat 0 (1)
DetailWidth x:DetailWidth 0 (1)
Expanded x:Expanded 0 (1)
FilterCaption x:FilterCaption 0 (1)
Formula x:Formula 0 (1)
FormulaV10 x:FormulaV10 0 (1)
ParseFormulaAsV10 x:ParseFormulaAsV10 0 (1)
GroupedWidth x:GroupedWidth 0 (1)
NewItemsHidden x:NewItemsHidden 0 (1)
PLCaption x:PLCaption 0 (1)
PLDataOrientation x:PLDataOrientation 0 (1)
PLGroupType x:PLGroupType 0 (1)
PLName x:PLName 0 (1)
PLPosition x:PLPosition 0 (1)
PLSubtotal x:PLSubtotal 0 (1)
SourceHierarchy x:SourceHierarchy 0 (1)
MemberPropertyParent x:MemberPropertyParent 0 (1)
SourceHierarchyLevel x:SourceHierarchyLevel 0 (1)
PivotItem x:PivotItem 0 unbounded
SubtotalFormat x:SubtotalFormat 0 (1)
TotalAlignment x:TotalAlignment 0 (1)
TotalCaptionAlignment x:TotalCaptionAlignment 0 (1)
TotalWidth x:TotalWidth 0 (1)
Collapse Derivation Tree:
