Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: PTRule
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:PTRuleType
Containing Schema: excel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Contains information describing an area of the PivotTable view.

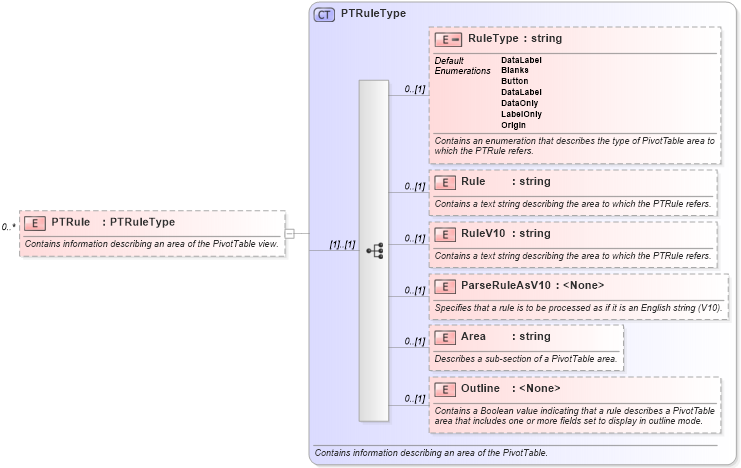

Collapse XSD Schema Diagram:
Drilldown into Outline in schema excel_xsd Drilldown into Area in schema excel_xsd Drilldown into ParseRuleAsV10 in schema excel_xsd Drilldown into RuleV10 in schema excel_xsd Drilldown into Rule in schema excel_xsd Drilldown into RuleType in schema excel_xsd Drilldown into PTRuleType in schema excel_xsdXSD Diagram of PTRule in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="PTRule" type="PTRuleType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Contains information describing an area of the PivotTable view.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RuleType x:RuleType 0 (1)
Rule x:Rule 0 (1)
RuleV10 x:RuleV10 0 (1)
ParseRuleAsV10 x:ParseRuleAsV10 0 (1)
Area x:Area 0 (1)
Outline x:Outline 0 (1)
Collapse Derivation Tree:
