Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: PTRuleType
Namespace: urn:schemas-microsoft-com:office:excel
Containing Schema: excel.xsd
Abstract
Documentation:
Contains information describing an area of the PivotTable.

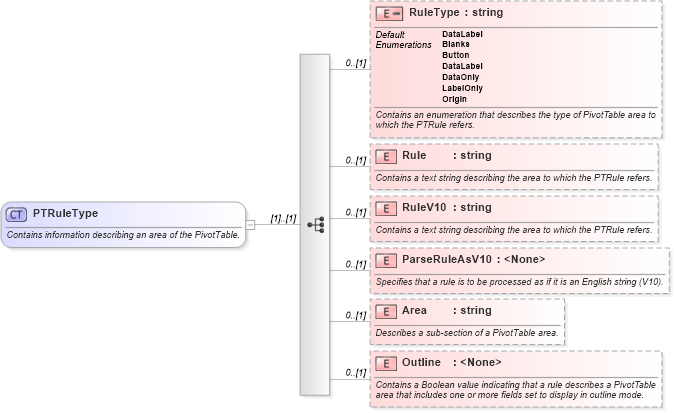

Collapse XSD Schema Diagram:
Drilldown into Outline in schema excel_xsd Drilldown into Area in schema excel_xsd Drilldown into ParseRuleAsV10 in schema excel_xsd Drilldown into RuleV10 in schema excel_xsd Drilldown into Rule in schema excel_xsd Drilldown into RuleType in schema excel_xsdXSD Diagram of PTRuleType in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="PTRuleType">
    <xsd:annotation>
        <xsd:documentation>Contains information describing an area of the PivotTable.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="RuleType" default="DataLabel" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains an enumeration that describes the type of PivotTable area to which the PTRule refers.</xsd:documentation>
            </xsd:annotation>
            <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                    <xsd:enumeration value="Blanks" />
                    <xsd:enumeration value="Button" />
                    <xsd:enumeration value="DataLabel" />
                    <xsd:enumeration value="DataOnly" />
                    <xsd:enumeration value="LabelOnly" />
                    <xsd:enumeration value="Origin" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:element>
        <xsd:element name="Rule" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains a text string describing the area to which the PTRule refers.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RuleV10" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains a text string describing the area to which the PTRule refers.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ParseRuleAsV10" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies that a rule is to be processed as if it is an English string (V10).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Area" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Describes a sub-section of a PivotTable area.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Outline" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains a Boolean value indicating that a rule describes a PivotTable area that includes one or more fields set to display in outline mode.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RuleType x:RuleType 0 (1)
Rule x:Rule 0 (1)
RuleV10 x:RuleV10 0 (1)
ParseRuleAsV10 x:ParseRuleAsV10 0 (1)
Area x:Area 0 (1)
Outline x:Outline 0 (1)
Collapse Derivation Tree:
Collapse References:
x:PTRule, x:PTRule, x:PTRule
