Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: tblPrExElt
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines specific exceptions to the table properties for this row.

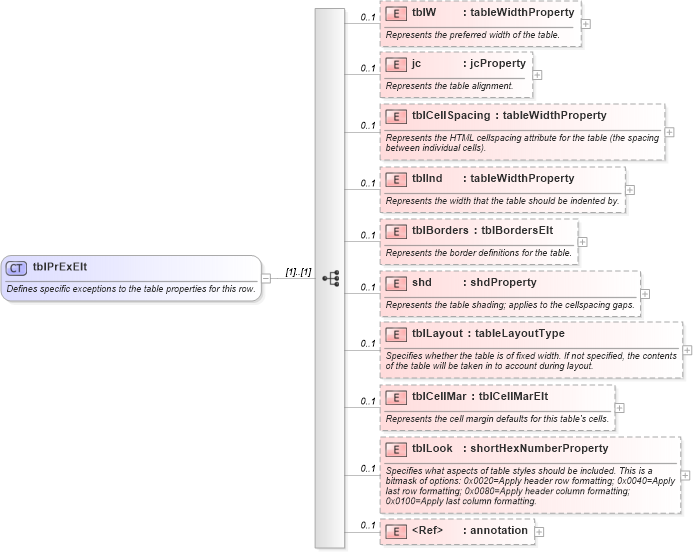

Collapse XSD Schema Diagram:
Drilldown into annotation in schema aml_xsd Drilldown into tblLook in schema wordnet_xsd Drilldown into tblCellMar in schema wordnet_xsd Drilldown into tblLayout in schema wordnet_xsd Drilldown into shd in schema wordnet_xsd Drilldown into tblBorders in schema wordnet_xsd Drilldown into tblInd in schema wordnet_xsd Drilldown into tblCellSpacing in schema wordnet_xsd Drilldown into jc in schema wordnet_xsd Drilldown into tblW in schema wordnet_xsdXSD Diagram of tblPrExElt in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="tblPrExElt">
    <xsd:annotation>
        <xsd:documentation>Defines specific exceptions to the table properties for this row.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="tblW" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the preferred width of the table.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="jc" type="jcProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the table alignment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblCellSpacing" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the HTML cellspacing attribute for the table (the spacing between individual cells).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblInd" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the width that the table should be indented by.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblBorders" type="tblBordersElt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the border definitions for the table.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="shd" type="shdProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the table shading; applies to the cellspacing gaps.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblLayout" type="tableLayoutType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Specifies whether the table is of fixed width. If not specified, the contents of the table will be taken in to account during layout.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblCellMar" type="tblCellMarElt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Represents the cell margin defaults for this table's cells.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblLook" type="shortHexNumberProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Specifies what aspects of table styles should be included. This is a bitmask of options: 0x0020=Apply header row formatting; 0x0040=Apply last row formatting; 0x0080=Apply header column formatting; 0x0100=Apply last column formatting.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="aml:annotation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table property row exceptions revision marking.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tblW W:tblW 0 1
jc W:jc 0 1
tblCellSpacing W:tblCellSpacing 0 1
tblInd W:tblInd 0 1
tblBorders W:tblBorders 0 1
shd W:shd 0 1
tblLayout W:tblLayout 0 1
tblCellMar W:tblCellMar 0 1
tblLook W:tblLook 0 1
annotation aml:annotation 0 1
Collapse Derivation Tree:
Collapse References:
W:tblPrEx
