Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: Worksheet
Namespace: urn:schemas-microsoft-com:office:spreadsheet
Type: ss:WorksheetType
Containing Schema: excelss.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines a worksheet within the current workbook. At least one instance of this element is required for a valid XML spreadsheet.

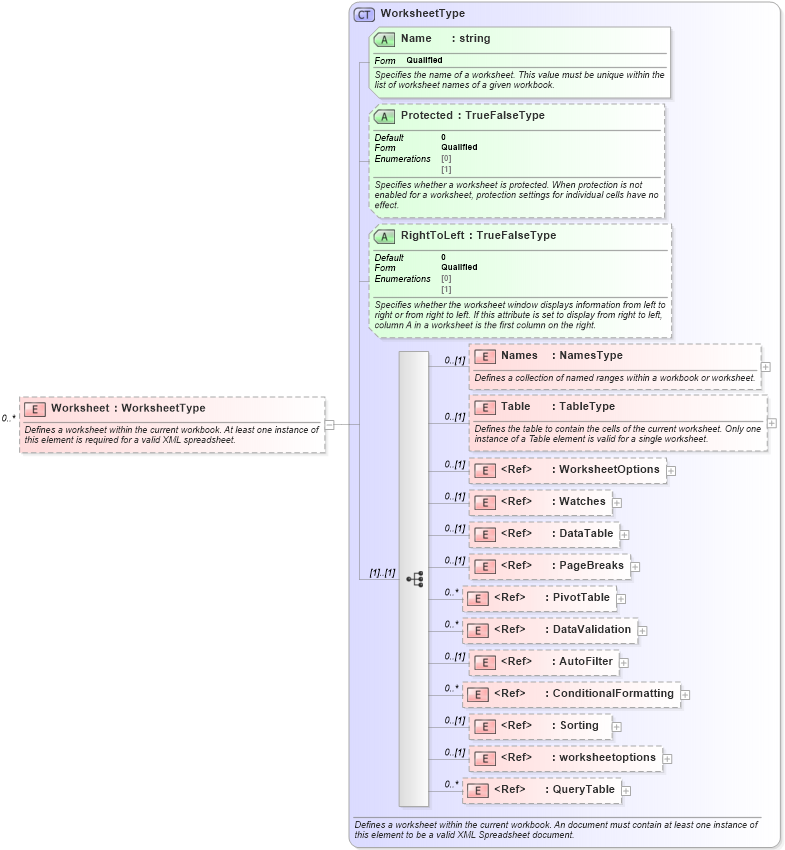

Collapse XSD Schema Diagram:
Drilldown into QueryTable in schema excel_xsd Drilldown into worksheetoptions in schema c_xsd Drilldown into Sorting in schema excel_xsd Drilldown into ConditionalFormatting in schema excel_xsd Drilldown into AutoFilter in schema excel_xsd Drilldown into DataValidation in schema excel_xsd Drilldown into PivotTable in schema excel_xsd Drilldown into PageBreaks in schema excel_xsd Drilldown into DataTable in schema excel_xsd Drilldown into Watches in schema excel_xsd Drilldown into WorksheetOptions in schema excel_xsd Drilldown into Table in schema excelss_xsd Drilldown into Names in schema excelss_xsd Drilldown into RightToLeft in schema excelss_xsd Drilldown into Protected in schema excelss_xsd Drilldown into Name in schema excelss_xsd Drilldown into WorksheetType in schema excelss_xsdXSD Diagram of Worksheet in schema excelss_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Worksheet" type="WorksheetType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Defines a worksheet within the current workbook. At least one instance of this element is required for a valid XML spreadsheet.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Names ss:Names 0 (1)
Table ss:Table 0 (1)
WorksheetOptions x:WorksheetOptions 0 (1)
Watches x:Watches 0 (1)
DataTable x:DataTable 0 (1)
PageBreaks x:PageBreaks 0 (1)
PivotTable x:PivotTable 0 unbounded
DataValidation x:DataValidation 0 unbounded
AutoFilter x:AutoFilter 0 (1)
ConditionalFormatting x:ConditionalFormatting 0 unbounded
Sorting x:Sorting 0 (1)
worksheetoptions c:worksheetoptions 0 (1)
QueryTable x:QueryTable 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Name ss:Name Required
Protected ss:Protected 0 Optional
RightToLeft ss:RightToLeft 0 Optional
Collapse Derivation Tree:
