Definition Type: ComplexType
Name: CT_Inline
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

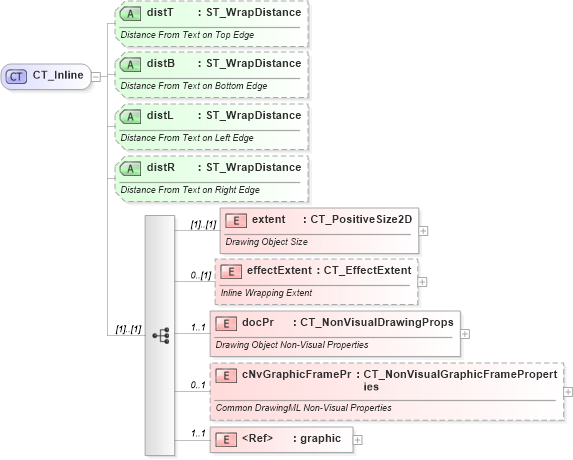

Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into cNvGraphicFramePr in schema dml-wordprocessingdrawing_xsd Drilldown into docPr in schema dml-wordprocessingdrawing_xsd Drilldown into effectExtent in schema dml-wordprocessingdrawing_xsd Drilldown into extent in schema dml-wordprocessingdrawing_xsd Drilldown into distR in schema dml-wordprocessingdrawing_xsd Drilldown into distL in schema dml-wordprocessingdrawing_xsd Drilldown into distB in schema dml-wordprocessingdrawing_xsd Drilldown into distT in schema dml-wordprocessingdrawing_xsdXSD Diagram of CT_Inline in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Inline">
    <xsd:sequence>
        <xsd:element name="extent" type="a:CT_PositiveSize2D">
            <xsd:annotation>
                <xsd:documentation>Drawing Object Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="effectExtent" type="CT_EffectExtent" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Inline Wrapping Extent</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="docPr" type="a:CT_NonVisualDrawingProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Drawing Object Non-Visual Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cNvGraphicFramePr" type="a:CT_NonVisualGraphicFrameProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Common DrawingML Non-Visual Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="a:graphic" minOccurs="1" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="distT" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Top Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distB" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Bottom Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distL" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Left Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distR" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Right Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extent wp:extent (1) (1)
effectExtent wp:effectExtent 0 (1)
docPr wp:docPr 1 1
cNvGraphicFramePr wp:cNvGraphicFramePr 0 1
graphic a:graphic 1 1
Collapse Child Attributes:
Name Type Default Value Use
distT wp:distT Optional
distB wp:distB Optional
distL wp:distL Optional
distR wp:distR Optional
