Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: CabinAvailabilityType
Containing Schema: OTA_AirCommonTypes.xsd
Abstract
Documentation:
Construct for holding cabin class information, such as seat availability or meal codes. Can be up to three of these per flight segment or air leg - First, Business and Economy.

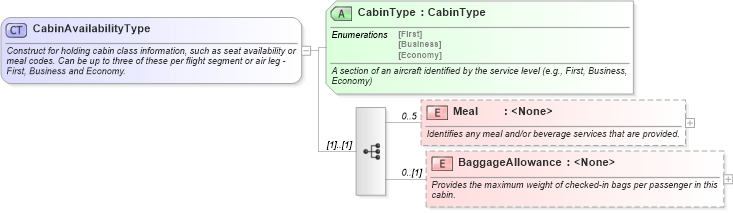

Collapse XSD Schema Diagram:
Drilldown into BaggageAllowance in schema ota_aircommontypes_xsd1 Drilldown into Meal in schema ota_aircommontypes_xsd1 Drilldown into CabinType in schema ota_aircommontypes_xsdXSD Diagram of CabinAvailabilityType in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:complexType name="CabinAvailabilityType">
    <xs:annotation>
        <xs:documentation xml:lang="en">Construct for holding cabin class information, such as seat availability or meal codes. Can be up to three of these per flight segment or air leg - First, Business and Economy.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="Meal" minOccurs="0" maxOccurs="5">
            <xs:annotation>
                <xs:documentation xml:lang="en"> Identifies any meal and/or beverage services that are provided.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
                <xs:attribute name="MealCode" type="MealServiceType" use="required">
                    <xs:annotation>
                        <xs:documentation xml:lang="en"> Used to designate a meal or beverage service.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:complexType>
        </xs:element>
        <xs:element name="BaggageAllowance" minOccurs="0">
            <xs:annotation>
                <xs:documentation xml:lang="en">Provides the maximum weight of checked-in bags per passenger in this cabin.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
                <xs:attributeGroup ref="UnitsOfMeasureGroup" />
            </xs:complexType>
        </xs:element>
    </xs:sequence>
    <xs:attribute name="CabinType" type="CabinType" use="required">
        <xs:annotation>
            <xs:documentation xml:lang="en">A section of an aircraft identified by the service level (e.g., First, Business, Economy)</xs:documentation>
        </xs:annotation>
    </xs:attribute>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Meal Meal 0 5
BaggageAllowance BaggageAllowance 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CabinType CabinType Required
Collapse Derivation Tree:
Collapse References:
nsA:MarketingCabinAvailabilityMarketingCabinType,
