Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: MarketingCabinType
Type: CabinAvailabilityType
Containing Schema: OTA_AirCommonTypes.xsd
Abstract
Documentation:
Marketing name for the First, Business or Economy cabin.

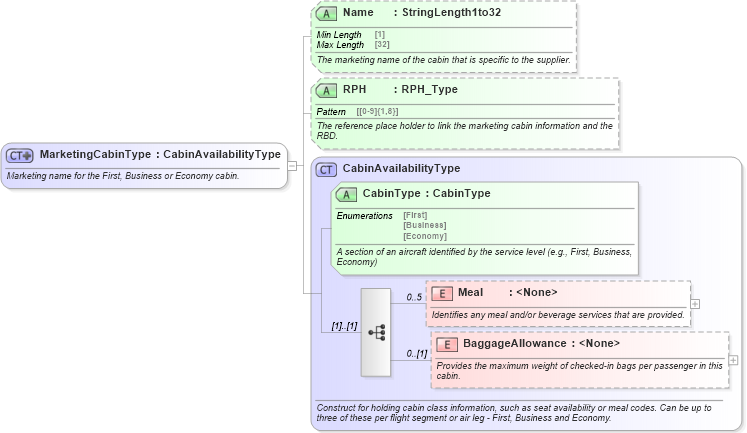

Collapse XSD Schema Diagram:
Drilldown into BaggageAllowance in schema ota_aircommontypes_xsd1 Drilldown into Meal in schema ota_aircommontypes_xsd1 Drilldown into CabinType in schema ota_aircommontypes_xsd Drilldown into CabinAvailabilityType in schema ota_aircommontypes_xsd1 Drilldown into RPH in schema ota_aircommontypes_xsd Drilldown into Name in schema ota_aircommontypes_xsdXSD Diagram of MarketingCabinType in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:complexType name="MarketingCabinType">
    <xs:annotation>
        <xs:documentation xml:lang="en"> Marketing name for the First, Business or Economy cabin.</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="CabinAvailabilityType">
            <xs:attribute name="Name" type="StringLength1to32" use="optional">
                <xs:annotation>
                    <xs:documentation xml:lang="en"> The marketing name of the cabin that is specific to the supplier.</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="RPH" type="RPH_Type" use="optional">
                <xs:annotation>
                    <xs:documentation xml:lang="en">The reference place holder to link the marketing cabin information and the RBD.</xs:documentation>
                </xs:annotation>
            </xs:attribute>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Meal Meal 0 5
BaggageAllowance BaggageAllowance 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CabinType CabinType Required
Name Name Optional
RPH RPH Optional
Collapse Derivation Tree:
Collapse References:
nsA:MarketingCabin, nsA:MarketingCabin, Unresolved link to marketingcabin2
