<xs:element name="TravelPreferences" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Contains travel preference information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="AirSearchPrefsType">
<xs:sequence>
<xs:element name="FareApplicationTypePref" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates the journey type for which fares are required e.g. OneWay, Return, HalfReturn </xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="FareApplicationType" type="FareApplicationType" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The journey type for which fares are required can be OneWay, Return or HalfReturn</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="PreferLevel" type="PreferLevelType" use="optional" />
</xs:complexType>
</xs:element>
<xs:element name="FareTypePref" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates the type of fare required e.g. unrestricted, excursion etc.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="FareTypePrefGroup">
<xs:annotation>
<xs:documentation xml:lang="en">The type of fare preferred and the preference level for this fare type.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
<xs:element name="FareAccessTypePref" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates the fare calculation type e.g. (PointToPoint, Through, Joint, Private)</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="NegotiatedFareCodes" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Container for multiple negotiated fare codes</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="NegotiatedFareCode" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Account code required to access fares</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:string">
<xs:attribute name="Code" type="StringLength1to16" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">Negotiated fare code to use when retrieving fare contracts</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="CodeContext" type="StringLength1to32" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Optional indicator to specify code list used</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="FareAccess" type="FareAccessPrefType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Fare calculation type (e.g. PointToPoint, Through, Joint, Private)</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="PreferLevel" type="PreferLevelType" use="optional" />
</xs:complexType>
</xs:element>
<xs:element name="BookingClassPref" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Booking Classes (RBD's) to include or exclude)</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="ResBookDesigCode" type="AlphaLength1to2" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The booking class code</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="PreferLevel" type="PreferLevelType" use="optional" />
</xs:complexType>
</xs:element>
<xs:element name="PricingPrefs" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Specify whether prices returned should include Taxes, ServicesFees</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="ExchangeRates" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Container for exchange rate elements </xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="ExchangeRate" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">Specify a particular exchange rate to use in the response.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="ExchangeRateGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Group of attributes used to express an Exchange Rate between 2 currencies</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="IncludeTaxInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, response should include taxes.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="IncludeServiceFeesInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, response should include service fee information.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="OverrideCurrency" type="AlphaLength3" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the currency for pricing that overrides that in point of sale. Use ISO 4217, 3 alpha code.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="AlternateCurrency" type="AlphaLength3" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the alternate currency for pricing other than that in point of sale or the override currency. Use ISO 4217, 3 alpha code.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="IncludeBaseAmtInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">If true, the base amount should be returned in the response. If false, it does not need to be returned.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="MaxRateAmount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The maximum rate that a traveler is willing to pay.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="MaxCalculatedRateAmount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The maximum calculated rate that a traveler is willing to pay.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="CurrencyOption" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">May be used to specify why an override currency is being included.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:NMTOKEN">
<xs:enumeration value="FilingCurrency">
<xs:annotation>
<xs:documentation xml:lang="en">Display fares filed in a specific currency (i.e., the override currency).</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="ConvertToCurrency">
<xs:annotation>
<xs:documentation xml:lang="en">Convert fares to a specific currency
(i.e., the override currency).</xs:documentation>
</xs:annotation>
</xs:enumeration>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="GlobalIndicatorPref" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Specify global direction preferences (e.g. AP- Atlantic Ocean, PA, Pacific Ocean etc.)</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="GlobalIndicatorCode" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">AP - Atlantic Ocean
PA - Pacific Ocean
WH - Western Hemisphere
EH - Eastern Hemisphere
PO - Polar Route
TS - Trans Siberia Route
AP - Atlantic/Pacific Round-the-World</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:NMTOKEN">
<xs:enumeration value="AT" />
<xs:enumeration value="PA" />
<xs:enumeration value="WH" />
<xs:enumeration value="EH" />
<xs:enumeration value="PO" />
<xs:enumeration value="TS">
<xs:annotation>
<xs:documentation xml:lang="en">Trans Siberian.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="AP">
<xs:annotation>
<xs:documentation xml:lang="en">Atlantic Pacific.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="SP" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CodeContext" type="StringLength1to32" use="optional" default="IATA">
<xs:annotation>
<xs:documentation xml:lang="en">The code list from which the global indicator code is valid</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="PreferLevel" type="PreferLevelType" use="optional" />
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="DistributorInfoInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> If true, the distributor information should be returned with the fare. </xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TicketDesignatorCode" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies that the fare being requested is for this ticket designator code.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="HistoricalFareInfoDate" type="DateOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">If the fare request is for a previously issued ticket, this is the date on which it was issued.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ReqFareLoadDateInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">If true, the fare load date information is being requested.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
|

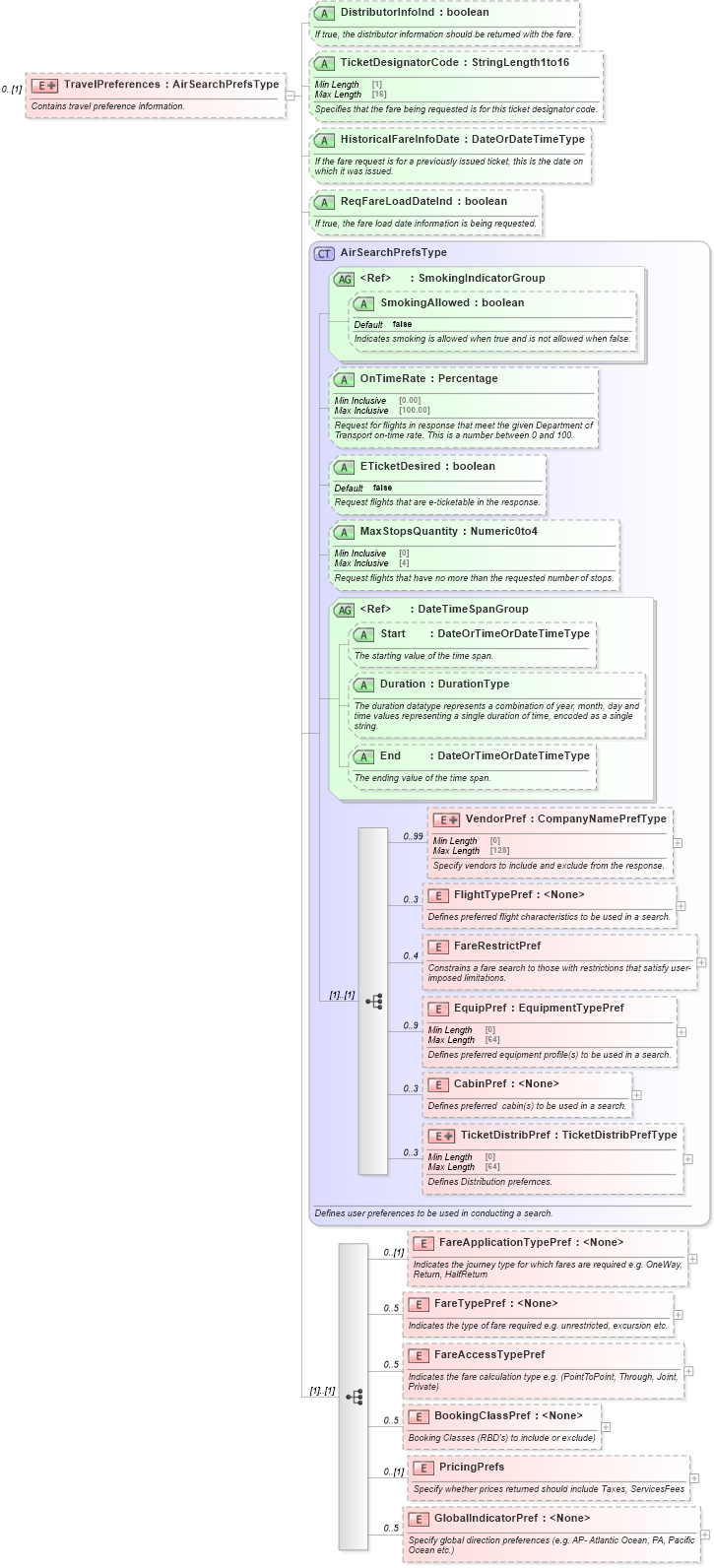

XSD Schema Diagram:
