Documentation for Open Travel (OTA)
Definition Type: Element
Name: AddressSubGrp
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:Address
Containing Schema: Common_4_0_0.xsd
Abstract True
Documentation:
Provides address information. Unformatted addresses are captured using the simple facet.

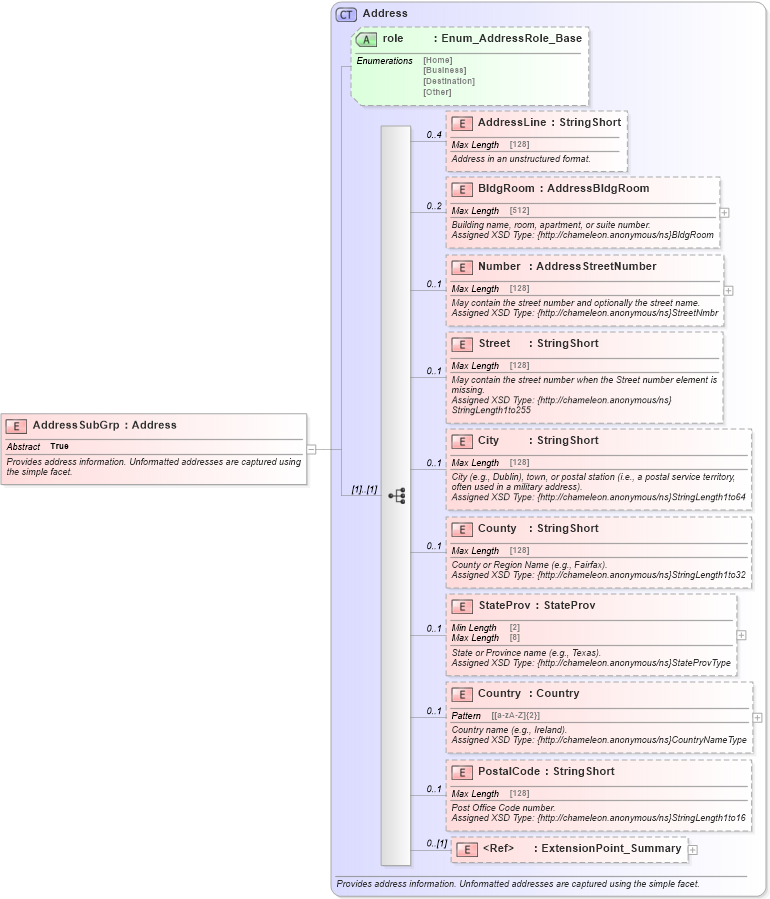

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into PostalCode in schema common_4_0_0_xsd Drilldown into Country in schema common_4_0_0_xsd Drilldown into StateProv in schema common_4_0_0_xsd Drilldown into County in schema common_4_0_0_xsd Drilldown into City in schema common_4_0_0_xsd Drilldown into Street in schema common_4_0_0_xsd Drilldown into Number in schema common_4_0_0_xsd Drilldown into BldgRoom in schema common_4_0_0_xsd Drilldown into AddressLine in schema common_4_0_0_xsd Drilldown into role in schema common_4_0_0_xsd Drilldown into Address in schema common_4_0_0_xsdXSD Diagram of AddressSubGrp in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element abstract="true" name="AddressSubGrp" type="ota2-0400:Address">
    <xsd:annotation>
        <xsd:documentation source="Description">Provides address information. Unformatted addresses are captured using the simple facet.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Address</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressLine ota2-0400:AddressLine 0 4
BldgRoom ota2-0400:BldgRoom 0 2
Number ota2-0400:Number 0 1
Street ota2-0400:Street 0 1
City ota2-0400:City 0 1
County ota2-0400:County 0 1
StateProv ota2-0400:StateProv 0 1
Country ota2-0400:Country 0 1
PostalCode ota2-0400:PostalCode 0 1
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
role ota2-0400:role (Optional)
Collapse Derivation Tree:
