Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: BaseHospitalityFacilityQuery
Namespace: http://www.opentravel.org/OTM/organization/hospitality/v3
Containing Schema: OrganizationHospitality_3_0_0.xsd
Abstract
Documentation:
This object is intended to be extended for use in facility queries. This object is intended to be extended for use in facility queries.

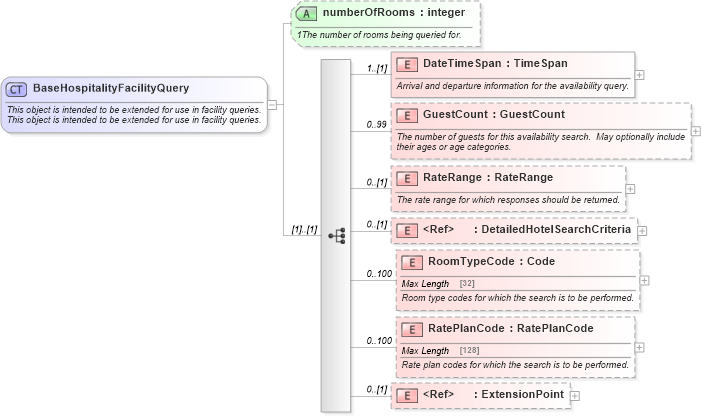

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into RatePlanCode in schema organizationhospitality_3_0_0_xsd Drilldown into RoomTypeCode in schema organizationhospitality_3_0_0_xsd Drilldown into DetailedHotelSearchCriteria in schema organizationhospitality_3_0_0_xsd Drilldown into RateRange in schema organizationhospitality_3_0_0_xsd Drilldown into GuestCount in schema organizationhospitality_3_0_0_xsd Drilldown into DateTimeSpan in schema organizationhospitality_3_0_0_xsd Drilldown into numberOfRooms in schema organizationhospitality_3_0_0_xsdXSD Diagram of BaseHospitalityFacilityQuery in schema organizationhospitality_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="BaseHospitalityFacilityQuery">
    <xsd:annotation>
        <xsd:documentation source="Description">This object is intended to be extended for use in facility queries.</xsd:documentation>
        <xsd:documentation source="Description">This object is intended to be extended for use in facility queries.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">BaseHospitalityFacilityQuery</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="1" name="DateTimeSpan" type="ota2-0400:TimeSpan">
            <xsd:annotation>
                <xsd:documentation source="Description">Arrival and departure information for the availability query.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="99" minOccurs="0" name="GuestCount" type="prod-0400:GuestCount">
            <xsd:annotation>
                <xsd:documentation source="Description">The number of guests for this availability search.  May optionally include their ages or age categories.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RateRange" type="ota2-0400:RateRange">
            <xsd:annotation>
                <xsd:documentation source="Description">The rate range for which responses should be returned.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="orghs-0300:DetailedHotelSearchCriteria">
            <xsd:annotation>
                <xsd:documentation source="Description">Detailed search criteria for hotel facilities.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="100" minOccurs="0" name="RoomTypeCode" type="ota2-0400:Code">
            <xsd:annotation>
                <xsd:documentation source="Description">Room type codes for which the search is to be performed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="100" minOccurs="0" name="RatePlanCode" type="ph:RatePlanCode">
            <xsd:annotation>
                <xsd:documentation source="Description">Rate plan codes for which the search is to be performed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
    <xsd:attribute name="numberOfRooms" type="xsd:integer" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">1The number of rooms being queried for.</xsd:documentation>
            <xsd:appinfo>
                <otm:Example context="orghs" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">1</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateTimeSpan orghs-0300:DateTimeSpan 1 (1)
GuestCount orghs-0300:GuestCount 0 99
RateRange orghs-0300:RateRange 0 (1)
DetailedHotelSearchCriteria orghs-0300:DetailedHotelSearchCriteria 0 (1)
RoomTypeCode orghs-0300:RoomTypeCode 0 100
RatePlanCode orghs-0300:RatePlanCode 0 100
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
numberOfRooms orghs-0300:numberOfRooms Optional
Collapse Derivation Tree:
Collapse References:
orghs-0300:BaseHospitalityFacilityQuery
