Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: CustomerCount
Namespace: http://www.opentravel.org/OTM/product/Ground/v2
Containing Schema: Ground_2_0_0.xsd
Abstract
Documentation:
A count of the number of customers in an age band.

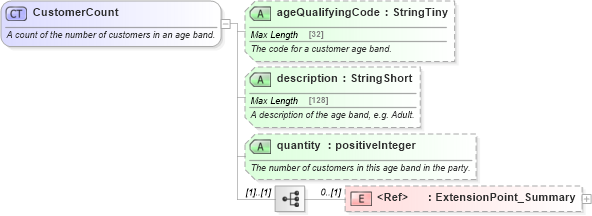

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into quantity in schema ground_2_0_0_xsd Drilldown into description in schema ground_2_0_0_xsd Drilldown into ageQualifyingCode in schema ground_2_0_0_xsdXSD Diagram of CustomerCount in schema ground_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="CustomerCount">
    <xsd:annotation>
        <xsd:documentation source="Description">A count of the number of customers in an age band.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CustomerCount</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Summary" />
    </xsd:sequence>
    <xsd:attribute name="ageQualifyingCode" type="ota2-0400:StringTiny" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">The code for a customer age band.</xsd:documentation>
            <xsd:appinfo>
                <otm:Example context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">A</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="description" type="ota2-0400:StringShort" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">A description of the age band, e.g. Adult.</xsd:documentation>
            <xsd:appinfo>
                <otm:Example context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Adult</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="quantity" type="xsd:positiveInteger" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">The number of customers in this age band in the party.</xsd:documentation>
            <xsd:appinfo>
                <otm:Example context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">2</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ageQualifyingCode pgt-0200:ageQualifyingCode Optional
description pgt-0200:description Optional
quantity pgt-0200:quantity Optional
Collapse Derivation Tree:
Collapse References:
pgt-0200:AdditionalPassengers, pgt-0200:AdditionalPassengersSubGrp, pgt-0200:AdditionalPassengersSummary, pgt-0200:CustomerCount, pgt-0200:CustomerCount_Detail, pgt-0200:CustomerCountSubGrp, pgt-0200:CustomerCountSummary
