Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: CustomerCount_Detail
Namespace: http://www.opentravel.org/OTM/product/Ground/v2
Type: pgt-0200:CustomerCount
Containing Schema: Ground_2_0_0.xsd
Abstract
Documentation:
A count of the number of customers in an age band.

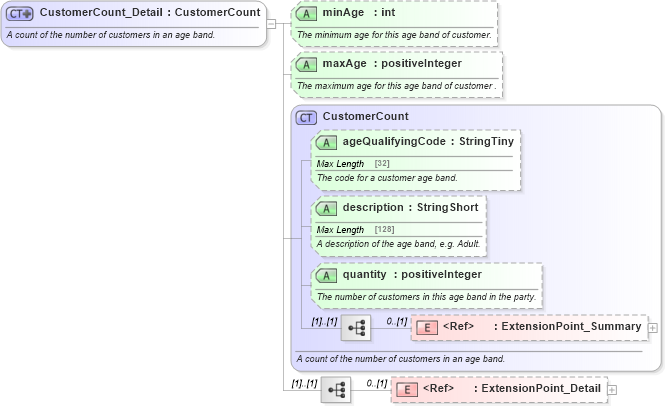

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into quantity in schema ground_2_0_0_xsd Drilldown into description in schema ground_2_0_0_xsd Drilldown into ageQualifyingCode in schema ground_2_0_0_xsd Drilldown into CustomerCount in schema ground_2_0_0_xsd Drilldown into maxAge in schema ground_2_0_0_xsd Drilldown into minAge in schema ground_2_0_0_xsdXSD Diagram of CustomerCount_Detail in schema ground_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="CustomerCount_Detail">
    <xsd:annotation>
        <xsd:documentation source="Description">A count of the number of customers in an age band.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CustomerCount</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="pgt-0200:CustomerCount">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
            <xsd:attribute name="minAge" type="xsd:int" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The minimum age for this age band of customer.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">16</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="maxAge" type="xsd:positiveInteger" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The maximum age for this age band of customer .</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">120</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ageQualifyingCode pgt-0200:ageQualifyingCode Optional
description pgt-0200:description Optional
quantity pgt-0200:quantity Optional
minAge pgt-0200:minAge Optional
maxAge pgt-0200:maxAge Optional
Collapse Derivation Tree:
Collapse References:
pgt-0200:AdditionalPassengersDetail, pgt-0200:CustomerCountDetail
