Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Deadline_TimePeriod
Namespace: http://www.opentravel.org/OTM/order/v3
Type: order-0300:Deadline
Containing Schema: Order_3_0_0.xsd
Abstract
Documentation:
Allows a choice between a time period range, an absolute date or a date range for the appication of a cancellation penalty.

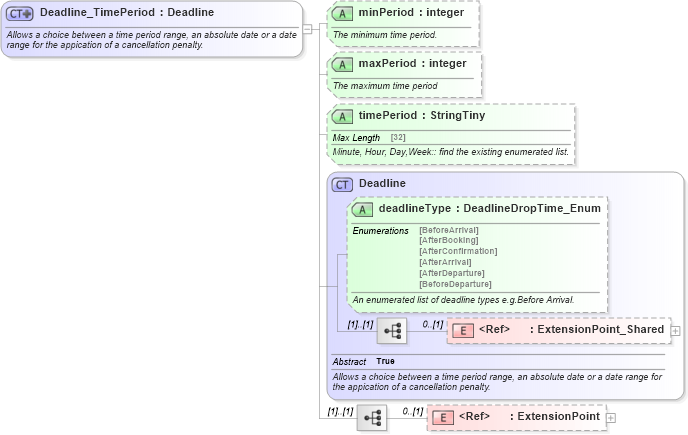

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into deadlineType in schema order_3_0_0_xsd Drilldown into Deadline in schema order_3_0_0_xsd Drilldown into timePeriod in schema order_3_0_0_xsd Drilldown into maxPeriod in schema order_3_0_0_xsd Drilldown into minPeriod in schema order_3_0_0_xsdXSD Diagram of Deadline_TimePeriod in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Deadline_TimePeriod">
    <xsd:annotation>
        <xsd:documentation source="Description">Allows a choice between a time period range, an absolute date or a date range for the appication of a cancellation penalty.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ChoiceObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Deadline</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="order-0300:Deadline">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
            </xsd:sequence>
            <xsd:attribute name="minPeriod" type="xsd:integer" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The minimum time period.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="maxPeriod" type="xsd:integer" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The maximum time period</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="timePeriod" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Minute, Hour, Day,Week:: find the existing enumerated list.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
deadlineType order-0300:deadlineType Optional
minPeriod order-0300:minPeriod Optional
maxPeriod order-0300:maxPeriod Optional
timePeriod order-0300:timePeriod Optional
Collapse Derivation Tree:
Collapse References:
order-0300:DeadlineTimePeriod
