Documentation for Open Travel (OTA)
Definition Type: Element
Name: DeadlineTimePeriod
Namespace: http://www.opentravel.org/OTM/order/v3
Type: order-0300:Deadline_TimePeriod
Containing Schema: Order_3_0_0.xsd
Abstract

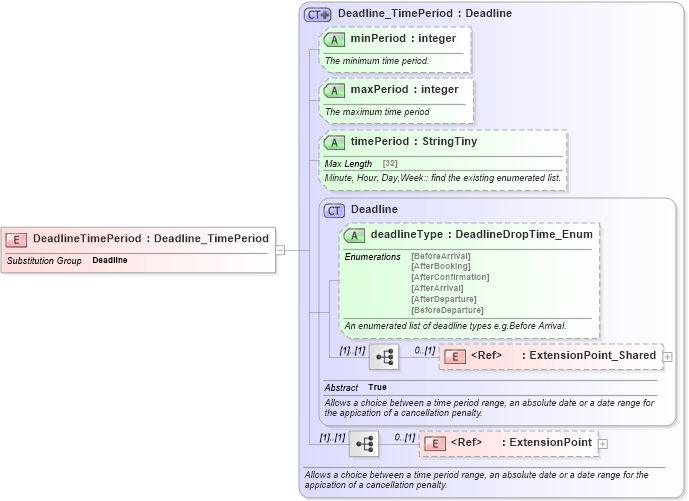

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into deadlineType in schema order_3_0_0_xsd Drilldown into Deadline in schema order_3_0_0_xsd Drilldown into timePeriod in schema order_3_0_0_xsd Drilldown into maxPeriod in schema order_3_0_0_xsd Drilldown into minPeriod in schema order_3_0_0_xsd Drilldown into Deadline_TimePeriod in schema order_3_0_0_xsdXSD Diagram of DeadlineTimePeriod in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="DeadlineTimePeriod" substitutionGroup="order-0300:Deadline" type="order-0300:Deadline_TimePeriod" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
deadlineType order-0300:deadlineType Optional
minPeriod order-0300:minPeriod Optional
maxPeriod order-0300:maxPeriod Optional
timePeriod order-0300:timePeriod Optional
Collapse Derivation Tree:
Collapse References:
order-0300:Deadline
