Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Facility_Query_Hotel
Namespace: http://www.opentravel.org/OTM/organization/hospitality/v3
Containing Schema: OrganizationHospitality_3_0_0.xsd
Abstract
Documentation:
Describes a facility (e.g. Hotel Facility,Conference Facility, Golf Facility). A facility must have a single address and a single geolocation.

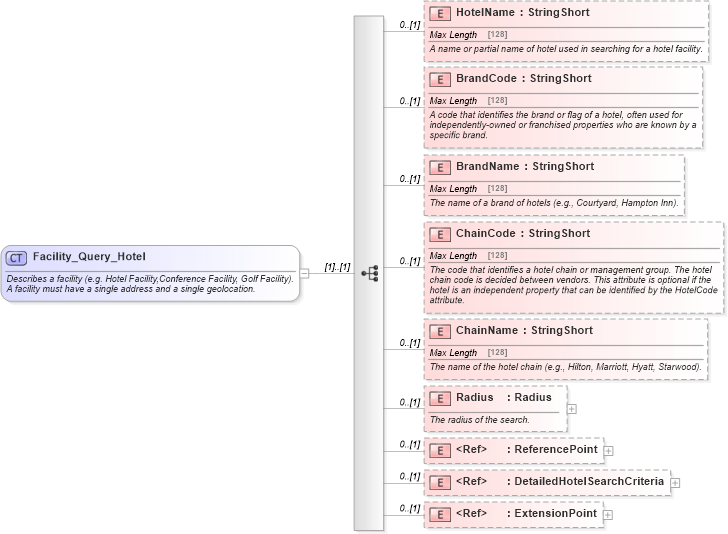

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into DetailedHotelSearchCriteria in schema organizationhospitality_3_0_0_xsd Drilldown into ReferencePoint in schema common_4_0_0_xsd Drilldown into Radius in schema organizationhospitality_3_0_0_xsd Drilldown into ChainName in schema organizationhospitality_3_0_0_xsd Drilldown into ChainCode in schema organizationhospitality_3_0_0_xsd Drilldown into BrandName in schema organizationhospitality_3_0_0_xsd Drilldown into BrandCode in schema organizationhospitality_3_0_0_xsd Drilldown into HotelName in schema organizationhospitality_3_0_0_xsdXSD Diagram of Facility_Query_Hotel in schema organizationhospitality_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Facility_Query_Hotel">
    <xsd:annotation>
        <xsd:documentation source="Description">Describes a facility (e.g. Hotel Facility,Conference Facility, Golf Facility).  A facility must have a single address and a single geolocation.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Facility</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="HotelName" type="ota2-0400:StringShort">
            <xsd:annotation>
                <xsd:documentation source="Description">A name or partial name of hotel used in searching for a hotel facility.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BrandCode" type="ota2-0400:StringShort">
            <xsd:annotation>
                <xsd:documentation source="Description">A code that identifies the brand or flag of a hotel, often used for independently-owned or franchised properties who are known by a specific brand.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="BrandName" type="ota2-0400:StringShort">
            <xsd:annotation>
                <xsd:documentation source="Description">The name of a brand of hotels (e.g., Courtyard, Hampton Inn).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ChainCode" type="ota2-0400:StringShort">
            <xsd:annotation>
                <xsd:documentation source="Description">The code that identifies a hotel chain or management group. The hotel chain code is decided between vendors. This attribute is optional if the hotel is an independent property that can be identified by the HotelCode attribute.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ChainName" type="ota2-0400:StringShort">
            <xsd:annotation>
                <xsd:documentation source="Description">The name of the hotel chain (e.g., Hilton, Marriott, Hyatt, Starwood).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="Radius" type="ota2-0400:Radius">
            <xsd:annotation>
                <xsd:documentation source="Description">The radius of the search.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2-0400:ReferencePoint">
            <xsd:annotation>
                <xsd:documentation source="Description">Specifies a reference point from which the search should be preformed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="orghs-0300:DetailedHotelSearchCriteria">
            <xsd:annotation>
                <xsd:documentation source="Description">Detailed search criteria for hotel facilities.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HotelName orghs-0300:HotelName 0 (1)
BrandCode orghs-0300:BrandCode 0 (1)
BrandName orghs-0300:BrandName 0 (1)
ChainCode orghs-0300:ChainCode 0 (1)
ChainName orghs-0300:ChainName 0 (1)
Radius orghs-0300:Radius 0 (1)
ReferencePoint ota2-0400:ReferencePoint 0 (1)
DetailedHotelSearchCriteria orghs-0300:DetailedHotelSearchCriteria 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Derivation Tree:
Collapse References:
orghs-0300:FacilityQueryHotel
