Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Location
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
Address and geocoding information for the facility. Address and geocoding information for the facility.

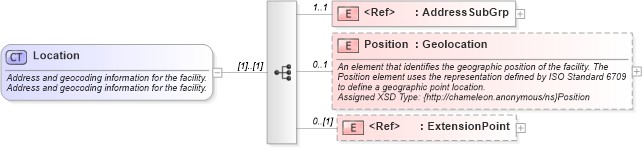

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into Position in schema common_4_0_0_xsd Drilldown into AddressSubGrp in schema common_4_0_0_xsdXSD Diagram of Location in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Location">
    <xsd:annotation>
        <xsd:documentation source="Description">Address and geocoding information for the facility.</xsd:documentation>
        <xsd:documentation source="Description">Address and geocoding information for the facility.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Location</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="1" ref="ota2-0400:AddressSubGrp">
            <xsd:annotation>
                <xsd:documentation source="Description">Public address of the property.</xsd:documentation>
                <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}AddressInfoType</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="Position" type="ota2-0400:Geolocation">
            <xsd:annotation>
                <xsd:documentation source="Description">An element that identifies the geographic position of the facility. The Position element uses the representation defined by ISO Standard 6709 to define a geographic point location.</xsd:documentation>
                <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressSubGrp ota2-0400:AddressSubGrp 1 1
Position ota2-0400:Position 0 1
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Derivation Tree:
Collapse References:
ota2-0400:Location
