Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: LocationPointChoice
Namespace: http://www.opentravel.org/OTM/product/v4
Containing Schema: Product_4_0_0.xsd
Abstract True
Documentation:
Provides address details for a location. Comare with JourneyPoint

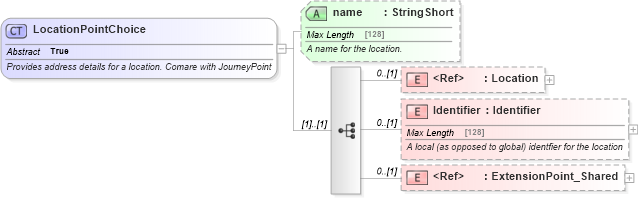

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into Identifier in schema product_4_0_0_xsd Drilldown into Location in schema common_4_0_0_xsd Drilldown into name in schema product_4_0_0_xsdXSD Diagram of LocationPointChoice in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType abstract="true" name="LocationPointChoice">
    <xsd:annotation>
        <xsd:documentation source="Description">Provides address details for a location. Comare with JourneyPoint</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ChoiceObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">LocationPointChoice</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="ota2-0400:Location">
            <xsd:annotation>
                <xsd:documentation source="Description">The address of the location.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="Identifier" type="ota2-0400:Identifier">
            <xsd:annotation>
                <xsd:documentation source="Description">A local (as opposed to global) identfier for the location</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Shared" />
    </xsd:sequence>
    <xsd:attribute name="name" type="ota2-0400:StringShort" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">A name for the location.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Location ota2-0400:Location 0 (1)
Identifier prod-0400:Identifier 0 (1)
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name prod-0400:name Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:LocationPointChoiceprod-0400:LocationPointChoice_Address, prod-0400:LocationPointChoice_Airport,
