Definition Type: Element
Name: LocationPointChoiceAirport
Namespace: http://www.opentravel.org/OTM/product/v4
Type: prod-0400:LocationPointChoice_Airport
Containing Schema: Product_4_0_0.xsd
Abstract

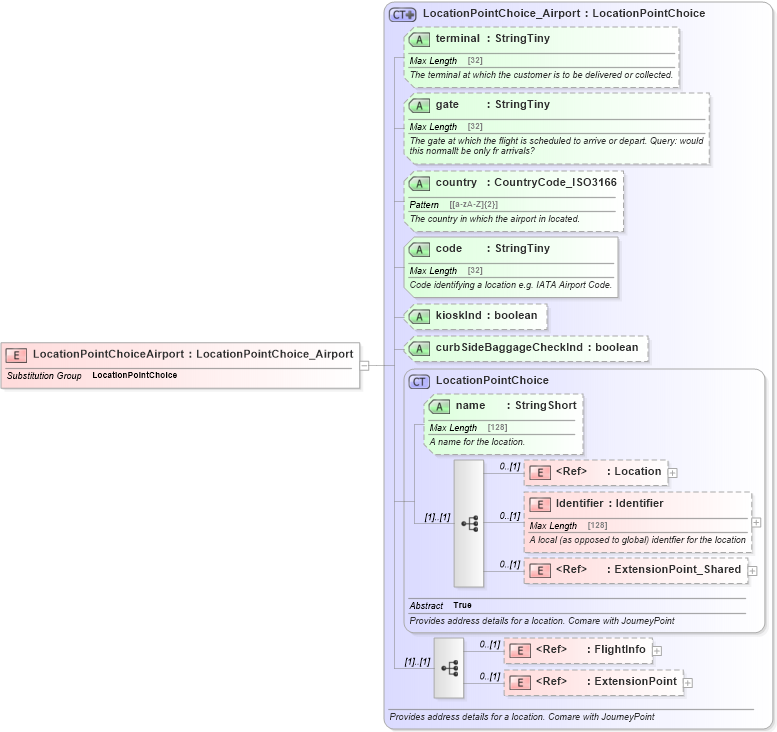

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into FlightInfo in schema ground_2_0_0_xsd Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into Identifier in schema product_4_0_0_xsd Drilldown into Location in schema common_4_0_0_xsd Drilldown into name in schema product_4_0_0_xsd Drilldown into LocationPointChoice in schema product_4_0_0_xsd Drilldown into curbSideBaggageCheckInd in schema product_4_0_0_xsd Drilldown into kioskInd in schema product_4_0_0_xsd Drilldown into code in schema product_4_0_0_xsd Drilldown into country in schema product_4_0_0_xsd Drilldown into gate in schema product_4_0_0_xsd Drilldown into terminal in schema product_4_0_0_xsd Drilldown into LocationPointChoice_Airport in schema product_4_0_0_xsdXSD Diagram of LocationPointChoiceAirport in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="LocationPointChoiceAirport" substitutionGroup="prod-0400:LocationPointChoice" type="prod-0400:LocationPointChoice_Airport" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Location ota2-0400:Location 0 (1)
Identifier prod-0400:Identifier 0 (1)
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
FlightInfo pgt-0200:FlightInfo 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name prod-0400:name Optional
terminal prod-0400:terminal Optional
gate prod-0400:gate Optional
country prod-0400:country Optional
code prod-0400:code Required
kioskInd prod-0400:kioskInd Optional
curbSideBaggageCheckInd prod-0400:curbSideBaggageCheckInd Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:LocationPointChoice
