Documentation for Open Travel (OTA)
Definition Type: Element
Name: MessageHeader
Namespace: http://opentravel.org/common/message/v02
Type: ota2msg:MessageHeader
Containing Schema: OTA2_Message_v2.0.0.xsd
Abstract
Documentation:
This Message Header object contains metadata that defines the standard root element information for all OpenTravel 2 messages.

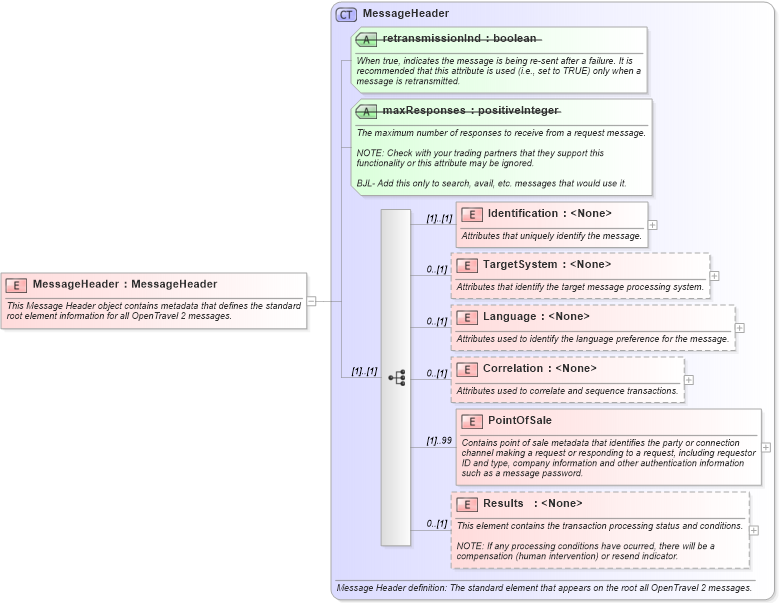

Collapse XSD Schema Diagram:
Drilldown into Results in schema ota2_message_v2_0_0_xsd Drilldown into PointOfSale in schema ota2_message_v2_0_0_xsd Drilldown into Correlation in schema ota2_message_v2_0_0_xsd Drilldown into Language in schema ota2_message_v2_0_0_xsd Drilldown into TargetSystem in schema ota2_message_v2_0_0_xsd Drilldown into Identification in schema ota2_message_v2_0_0_xsd Drilldown into maxResponses in schema ota2_message_v2_0_0_xsd Drilldown into retransmissionInd in schema ota2_message_v2_0_0_xsd Drilldown into MessageHeader in schema ota2_message_v2_0_0_xsdXSD Diagram of MessageHeader in schema ota2_message_v2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="MessageHeader" type="MessageHeader">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This Message Header object contains metadata that defines the standard root element information for all OpenTravel 2 messages.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identification ota2msg:Identification (1) (1)
TargetSystem ota2msg:TargetSystem 0 (1)
Language ota2msg:Language 0 (1)
Correlation ota2msg:Correlation 0 (1)
PointOfSale ota2msg:PointOfSale (1) 99
Results ota2msg:Results 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
retransmissionInd ota2msg:retransmissionInd Prohibited
maxResponses ota2msg:maxResponses Prohibited
Collapse Derivation Tree:
