Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: MultimediaCollection
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
Contains multimedia item(s). Contains multimedia item(s).

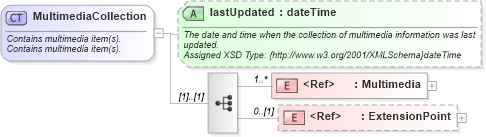

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into Multimedia in schema common_4_0_0_xsd Drilldown into lastUpdated in schema common_4_0_0_xsdXSD Diagram of MultimediaCollection in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="MultimediaCollection">
    <xsd:annotation>
        <xsd:documentation source="Description">Contains multimedia item(s).</xsd:documentation>
        <xsd:documentation source="Description">Contains multimedia item(s).</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">MultimediaCollection</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="unbounded" minOccurs="1" ref="ota2-0400:Multimedia">
            <xsd:annotation>
                <xsd:documentation source="Description">A multimedia item.</xsd:documentation>
                <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}MultimediaDescriptionType</xsd:documentation>
                <xsd:appinfo>
                    <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">MultimediaDescription</otm:Equivalent>
                </xsd:appinfo>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
    <xsd:attribute name="lastUpdated" type="xsd:dateTime" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">The date and time when the collection of multimedia information was last updated.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}dateTime</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">LastUpdated</otm:Equivalent>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Multimedia ota2-0400:Multimedia 1 unbounded
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lastUpdated ota2-0400:lastUpdated Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:MultimediaCollection
