Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Order_ID
Namespace: http://www.opentravel.org/OTM/order/v3
Containing Schema: Order_3_0_0.xsd
Abstract

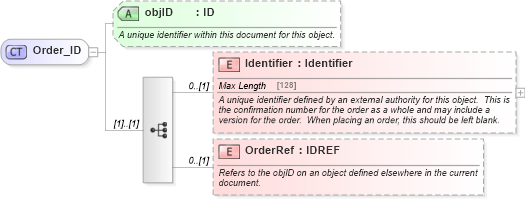

Collapse XSD Schema Diagram:
Drilldown into OrderRef in schema order_3_0_0_xsd Drilldown into Identifier in schema order_3_0_0_xsd Drilldown into objID in schema order_3_0_0_xsdXSD Diagram of Order_ID in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Order_ID">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Order</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="Identifier" type="ota2-0400:Identifier">
            <xsd:annotation>
                <xsd:documentation source="Description">A unique identifier defined by an external authority for this object.  This is the confirmation number for the order as a whole and may include a version for the order.  When placing an order, this should be left blank.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OrderRef" type="xsd:IDREF">
            <xsd:annotation>
                <xsd:documentation source="Description">Refers to the objID on an object defined elsewhere in the current document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="objID" type="xsd:ID" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">A unique identifier within this document for this object.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier order-0300:Identifier 0 (1)
OrderRef order-0300:OrderRef 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID order-0300:objID Optional
Collapse Derivation Tree:
Collapse References:
order-0300:Order, order-0300:OrderID, order-0300:OrderIdentifier, order-0300:OrderSubGrp
