Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Order_Confirmation
Namespace: http://www.opentravel.org/OTM/order/v3
Type: order-0300:Order
Containing Schema: Order_3_0_0.xsd
Abstract

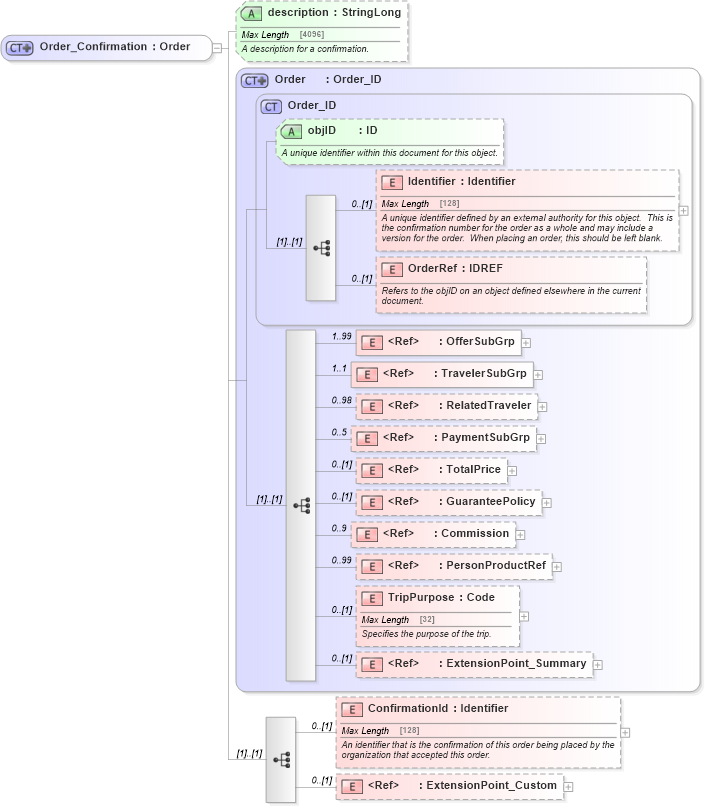

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Custom in schema otm_builtins_xsd Drilldown into ConfirmationId in schema order_3_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into TripPurpose in schema order_3_0_0_xsd Drilldown into PersonProductRef in schema order_3_0_0_xsd Drilldown into Commission in schema order_3_0_0_xsd Drilldown into GuaranteePolicy in schema order_3_0_0_xsd Drilldown into TotalPrice in schema order_3_0_0_xsd Drilldown into PaymentSubGrp in schema order_3_0_0_xsd Drilldown into RelatedTraveler in schema common_4_0_0_xsd Drilldown into TravelerSubGrp in schema common_4_0_0_xsd Drilldown into OfferSubGrp in schema order_3_0_0_xsd Drilldown into OrderRef in schema order_3_0_0_xsd Drilldown into Identifier in schema order_3_0_0_xsd Drilldown into objID in schema order_3_0_0_xsd Drilldown into Order_ID in schema order_3_0_0_xsd Drilldown into Order in schema order_3_0_0_xsd Drilldown into description in schema order_3_0_0_xsdXSD Diagram of Order_Confirmation in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Order_Confirmation">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Order</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="order-0300:Order">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="ConfirmationId" type="ota2-0400:Identifier">
                    <xsd:annotation>
                        <xsd:documentation source="Description">An identifier that is the confirmation of this order being placed by the organization that accepted this order.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Custom" />
            </xsd:sequence>
            <xsd:attribute name="description" type="ota2-0400:StringLong" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">A description for a confirmation.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier order-0300:Identifier 0 (1)
OrderRef order-0300:OrderRef 0 (1)
OfferSubGrp order-0300:OfferSubGrp 1 99
TravelerSubGrp ota2-0400:TravelerSubGrp 1 1
RelatedTraveler ota2-0400:RelatedTraveler 0 98
PaymentSubGrp order-0300:PaymentSubGrp 0 5
TotalPrice order-0300:TotalPrice 0 (1)
GuaranteePolicy order-0300:GuaranteePolicy 0 (1)
Commission order-0300:Commission 0 9
PersonProductRef order-0300:PersonProductRef 0 99
TripPurpose order-0300:TripPurpose 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
ConfirmationId order-0300:ConfirmationId 0 (1)
ExtensionPoint_Custom ota2:ExtensionPoint_Custom 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID order-0300:objID Optional
description order-0300:description Optional
Collapse Derivation Tree:
Collapse References:
order-0300:OrderConfirmation
