Documentation for Open Travel (OTA)
Definition Type: Element
Name: OriginalIssue
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: fin-0300:OriginalIssueAttributes
Containing Schema: Finance_3_0_0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Provides information about the original document on which the reissue is based.

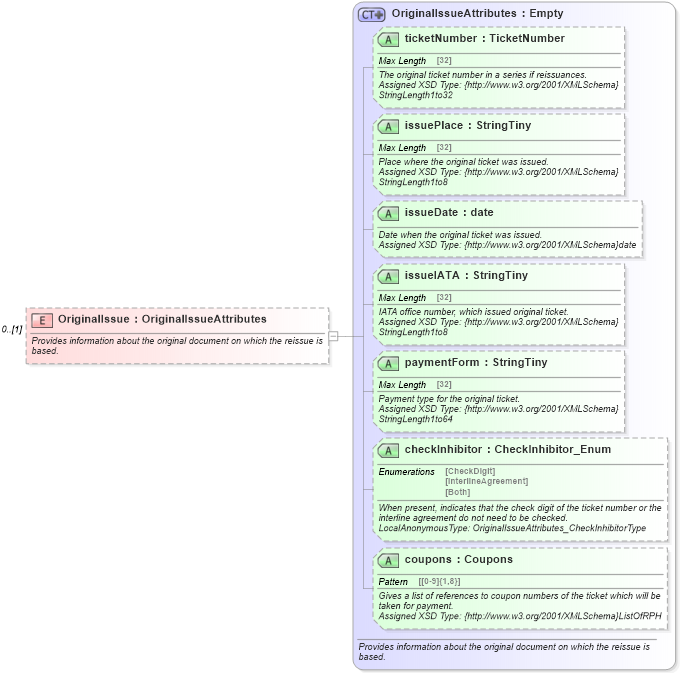

Collapse XSD Schema Diagram:
Drilldown into coupons in schema finance_3_0_0_xsd Drilldown into checkInhibitor in schema finance_3_0_0_xsd Drilldown into paymentForm in schema finance_3_0_0_xsd Drilldown into issueIATA in schema finance_3_0_0_xsd Drilldown into issueDate in schema finance_3_0_0_xsd Drilldown into issuePlace in schema finance_3_0_0_xsd Drilldown into ticketNumber in schema finance_3_0_0_xsd Drilldown into OriginalIssueAttributes in schema finance_3_0_0_xsdXSD Diagram of OriginalIssue in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element minOccurs="0" name="OriginalIssue" type="fin-0300:OriginalIssueAttributes">
    <xsd:annotation>
        <xsd:documentation source="Description">Provides information about the original document on which the reissue is based.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
ticketNumber fin-0300:ticketNumber Optional
issuePlace fin-0300:issuePlace Optional
issueDate fin-0300:issueDate Optional
issueIATA fin-0300:issueIATA Optional
paymentForm fin-0300:paymentForm Optional
checkInhibitor fin-0300:checkInhibitor Optional
coupons fin-0300:coupons Optional
Collapse Derivation Tree:
