Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: OriginalIssueAttributes
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: ota2:Empty
Containing Schema: Finance_3_0_0.xsd
Abstract
Documentation:
Provides information about the original document on which the reissue is based.

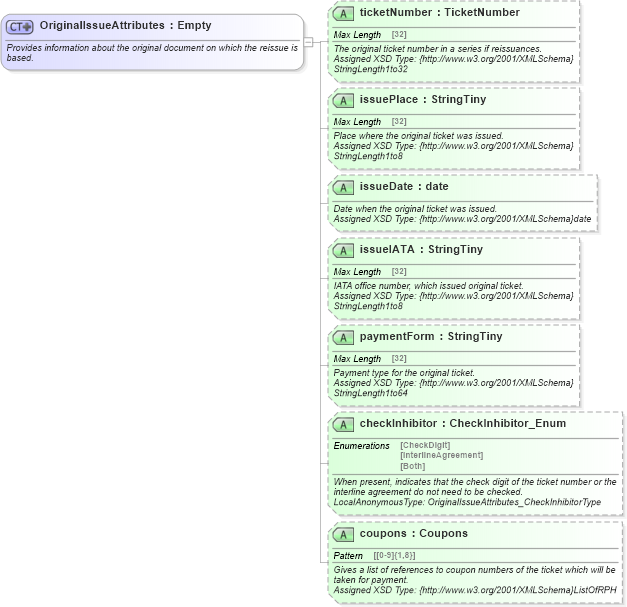

Collapse XSD Schema Diagram:
Drilldown into coupons in schema finance_3_0_0_xsd Drilldown into checkInhibitor in schema finance_3_0_0_xsd Drilldown into paymentForm in schema finance_3_0_0_xsd Drilldown into issueIATA in schema finance_3_0_0_xsd Drilldown into issueDate in schema finance_3_0_0_xsd Drilldown into issuePlace in schema finance_3_0_0_xsd Drilldown into ticketNumber in schema finance_3_0_0_xsdXSD Diagram of OriginalIssueAttributes in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="OriginalIssueAttributes">
    <xsd:annotation>
        <xsd:documentation source="Description">Provides information about the original document on which the reissue is based.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ValueWithAttributes" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalIssueAttributes</otm:OTA2Entity>
            <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalIssueAttributes</otm:Equivalent>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ota2:Empty">
            <xsd:attribute name="ticketNumber" type="ota2-0400:TicketNumber" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The original ticket number in a series if reissuances.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalTicketNumber</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">238473638474</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="issuePlace" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Place where the original ticket was issued.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to8</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalIssuePlace</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Boston</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="issueDate" type="xsd:date" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Date when the original ticket was issued.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}date</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalIssueDate</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">1999-07-16</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="issueIATA" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">IATA office number, which issued original ticket.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to8</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalIssueIATA</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">32938473829</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="paymentForm" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Payment type for the original ticket.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to64</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">OriginalPaymentForm</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Credit card</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="checkInhibitor" type="fin-0300:CheckInhibitor_Enum" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">When present, indicates that the check digit of the ticket number or the interline agreement do not need to be checked.</xsd:documentation>
                    <xsd:documentation source="Implementer">LocalAnonymousType: OriginalIssueAttributes_CheckInhibitorType</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CheckInhibitorType</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="coupons" type="fin-0300:Coupons" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Gives a list of references to coupon numbers of the ticket which will be taken for payment.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}ListOfRPH</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CouponRPHs</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
ticketNumber fin-0300:ticketNumber Optional
issuePlace fin-0300:issuePlace Optional
issueDate fin-0300:issueDate Optional
issueIATA fin-0300:issueIATA Optional
paymentForm fin-0300:paymentForm Optional
checkInhibitor fin-0300:checkInhibitor Optional
coupons fin-0300:coupons Optional
Collapse Derivation Tree:
Collapse References:
fin-0300:OriginalIssue, fin-0300:OriginalIssueAttributes
