Documentation for Open Travel (OTA)
Definition Type: Element
Name: Payment
Namespace: http://www.opentravel.org/OTM/order/v3
Type: order-0300:Payment
Containing Schema: Order_3_0_0.xsd
Abstract

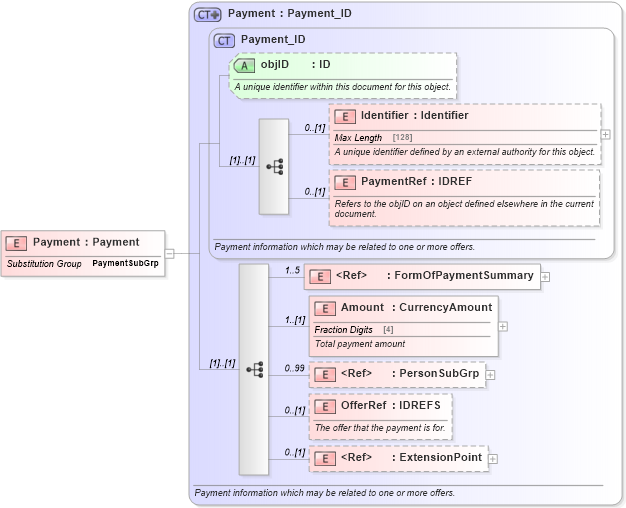

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into OfferRef in schema order_3_0_0_xsd Drilldown into PersonSubGrp in schema common_4_0_0_xsd Drilldown into Amount in schema order_3_0_0_xsd Drilldown into FormOfPaymentSummary in schema finance_3_0_0_xsd Drilldown into PaymentRef in schema order_3_0_0_xsd Drilldown into Identifier in schema order_3_0_0_xsd Drilldown into objID in schema order_3_0_0_xsd Drilldown into Payment_ID in schema order_3_0_0_xsd Drilldown into Payment in schema order_3_0_0_xsdXSD Diagram of Payment in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="Payment" substitutionGroup="order-0300:PaymentSubGrp" type="order-0300:Payment" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier order-0300:Identifier 0 (1)
PaymentRef order-0300:PaymentRef 0 (1)
FormOfPaymentSummary fin-0300:FormOfPaymentSummary 1 5
Amount order-0300:Amount 1 (1)
PersonSubGrp ota2-0400:PersonSubGrp 0 99
OfferRef order-0300:OfferRef 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID order-0300:objID Optional
Collapse Derivation Tree:
Collapse References:
order-0300:PaymentSubGrp
