Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Person_ID
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract
Collapse XSD Schema Diagram:

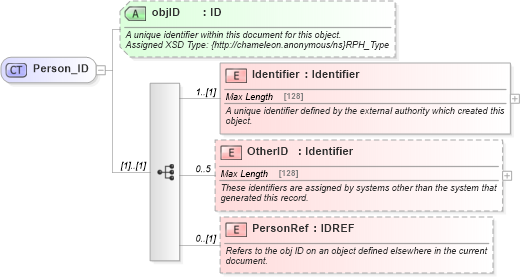

Drilldown into PersonRef in schema common_4_0_0_xsd Drilldown into OtherID in schema common_4_0_0_xsd Drilldown into Identifier in schema common_4_0_0_xsd Drilldown into objID in schema common_4_0_0_xsdXSD Diagram of Person_ID in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Person_ID">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Person</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="1" name="Identifier" type="ota2-0400:Identifier">
            <xsd:annotation>
                <xsd:documentation source="Description">A unique identifier defined by the external authority which created this object.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="5" minOccurs="0" name="OtherID" type="ota2-0400:Identifier">
            <xsd:annotation>
                <xsd:documentation source="Description">These identifiers are assigned by systems other than the system that generated this record.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PersonRef" type="xsd:IDREF">
            <xsd:annotation>
                <xsd:documentation source="Description">Refers to the obj ID on an object defined elsewhere in the current document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="objID" type="xsd:ID" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">A unique identifier within this document for this object.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}RPH_Type</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RPH</otm:Equivalent>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier ota2-0400:Identifier 1 (1)
OtherID ota2-0400:OtherID 0 5
PersonRef ota2-0400:PersonRef 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID ota2-0400:objID Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:Person, ota2-0400:PersonID, ota2-0400:PersonIdentifier, ota2-0400:PersonSubGrp
