Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: PropertyInfo_Detail
Namespace: http://www.opentravel.org/OTM/product/v4
Type: prod-0400:PropertyInfo
Containing Schema: Product_4_0_0.xsd
Abstract
Documentation:
Identifies a property.
Collapse XSD Schema Diagram:

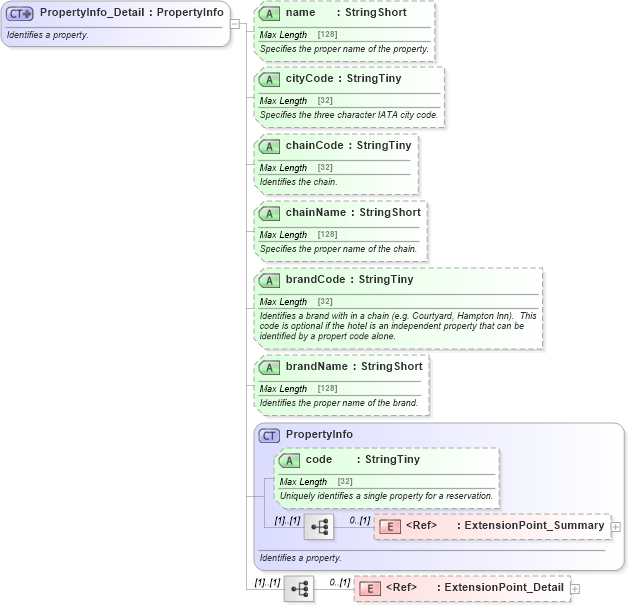

Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into code in schema product_4_0_0_xsd Drilldown into PropertyInfo in schema product_4_0_0_xsd Drilldown into brandName in schema product_4_0_0_xsd Drilldown into brandCode in schema product_4_0_0_xsd Drilldown into chainName in schema product_4_0_0_xsd Drilldown into chainCode in schema product_4_0_0_xsd Drilldown into cityCode in schema product_4_0_0_xsd Drilldown into name in schema product_4_0_0_xsdXSD Diagram of PropertyInfo_Detail in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="PropertyInfo_Detail">
    <xsd:annotation>
        <xsd:documentation source="Description">Identifies a property.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">PropertyInfo</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="prod-0400:PropertyInfo">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
            <xsd:attribute name="name" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the proper name of the property.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="cityCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the three character IATA city code.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="chainCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the chain.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="chainName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the proper name of the chain.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="brandCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies a brand with in a chain (e.g. Courtyard, Hampton Inn).  This code is optional if the hotel is an independent property that can be identified by a propert code alone.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="brandName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the proper name of the brand.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
code prod-0400:code Optional
name prod-0400:name Optional
cityCode prod-0400:cityCode Optional
chainCode prod-0400:chainCode Optional
chainName prod-0400:chainName Optional
brandCode prod-0400:brandCode Optional
brandName prod-0400:brandName Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:PropertyInfoDetail, prod-0400:SiteDetail
