Documentation for Open Travel (OTA)
Definition Type: Element
Name: SiteDetail
Namespace: http://www.opentravel.org/OTM/product/v4
Type: prod-0400:PropertyInfo_Detail
Containing Schema: Product_4_0_0.xsd
Abstract

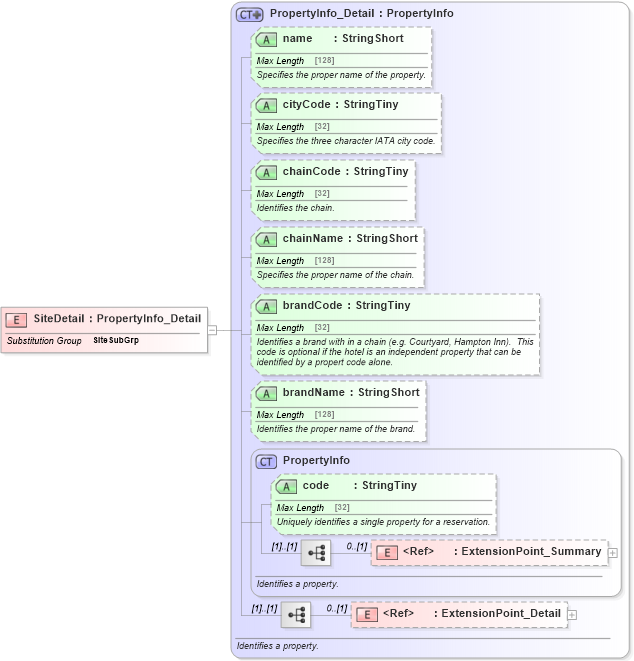

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into code in schema product_4_0_0_xsd Drilldown into PropertyInfo in schema product_4_0_0_xsd Drilldown into brandName in schema product_4_0_0_xsd Drilldown into brandCode in schema product_4_0_0_xsd Drilldown into chainName in schema product_4_0_0_xsd Drilldown into chainCode in schema product_4_0_0_xsd Drilldown into cityCode in schema product_4_0_0_xsd Drilldown into name in schema product_4_0_0_xsd Drilldown into PropertyInfo_Detail in schema product_4_0_0_xsdXSD Diagram of SiteDetail in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="SiteDetail" substitutionGroup="prod-0400:SiteSubGrp" type="prod-0400:PropertyInfo_Detail" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
code prod-0400:code Optional
name prod-0400:name Optional
cityCode prod-0400:cityCode Optional
chainCode prod-0400:chainCode Optional
chainName prod-0400:chainName Optional
brandCode prod-0400:brandCode Optional
brandName prod-0400:brandName Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:SiteSubGrp
