Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: RatePlan_Detail
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: ph:RatePlan
Containing Schema: Hospitality_1_0_0.xsd
Abstract
Documentation:
Information significant to defining a rate plan.

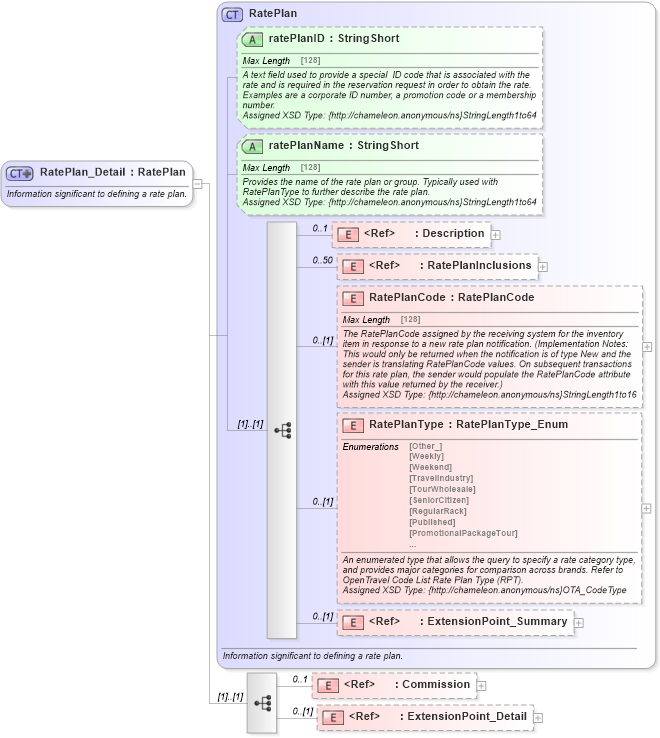

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into Commission in schema hospitality_1_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into RatePlanType in schema hospitality_1_0_0_xsd Drilldown into RatePlanCode in schema hospitality_1_0_0_xsd Drilldown into RatePlanInclusions in schema hospitality_1_0_0_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into ratePlanName in schema hospitality_1_0_0_xsd Drilldown into ratePlanID in schema hospitality_1_0_0_xsd Drilldown into RatePlan in schema hospitality_1_0_0_xsdXSD Diagram of RatePlan_Detail in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="RatePlan_Detail">
    <xsd:annotation>
        <xsd:documentation source="Description">Information significant to defining a rate plan.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlan</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ph:RatePlan">
            <xsd:sequence>
                <xsd:element maxOccurs="1" minOccurs="0" ref="ph:Commission">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Commission associated with the RatePlan. This can be a percentage or a flat amount.</xsd:documentation>
                        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}CommissionType</xsd:documentation>
                        <xsd:appinfo>
                            <otm:Equivalent context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Commission</otm:Equivalent>
                        </xsd:appinfo>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description ota2-0400:Description 0 1
RatePlanInclusions ph:RatePlanInclusions 0 50
RatePlanCode ph:RatePlanCode 0 (1)
RatePlanType ph:RatePlanType 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Commission ph:Commission 0 1
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ratePlanID ph:ratePlanID Optional
ratePlanName ph:ratePlanName Optional
Collapse Derivation Tree:
Collapse References:
ph:RatePlanDetail
