Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: RoomRate_Detail
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: ph:RoomRate
Containing Schema: Hospitality_1_0_0.xsd
Abstract
Documentation:
Specifies the details of a room rate.

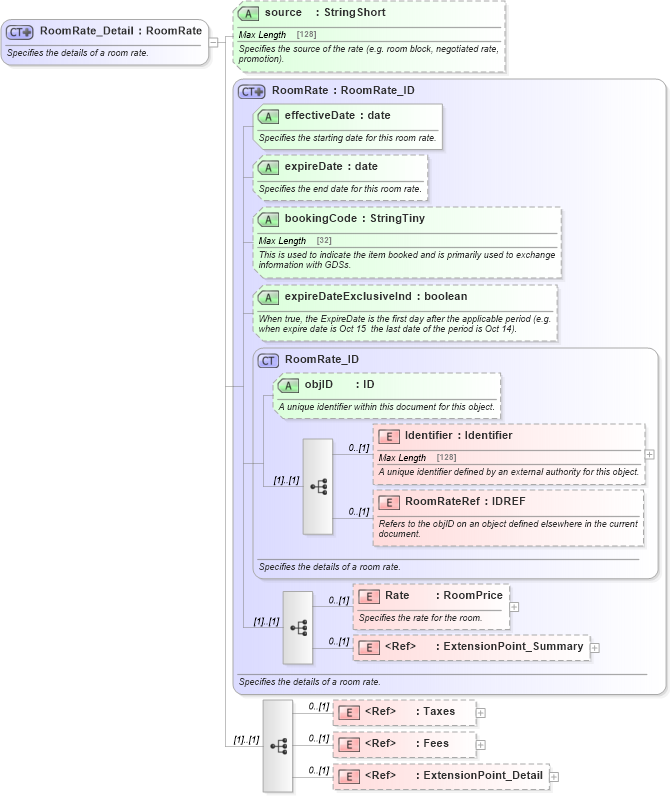

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into Fees in schema common_4_0_0_xsd Drilldown into Taxes in schema common_4_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into Rate in schema hospitality_1_0_0_xsd Drilldown into RoomRateRef in schema hospitality_1_0_0_xsd Drilldown into Identifier in schema hospitality_1_0_0_xsd Drilldown into objID in schema hospitality_1_0_0_xsd Drilldown into RoomRate_ID in schema hospitality_1_0_0_xsd Drilldown into expireDateExclusiveInd in schema hospitality_1_0_0_xsd Drilldown into bookingCode in schema hospitality_1_0_0_xsd Drilldown into expireDate in schema hospitality_1_0_0_xsd Drilldown into effectiveDate in schema hospitality_1_0_0_xsd Drilldown into RoomRate in schema hospitality_1_0_0_xsd Drilldown into source in schema hospitality_1_0_0_xsdXSD Diagram of RoomRate_Detail in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="RoomRate_Detail">
    <xsd:annotation>
        <xsd:documentation source="Description">Specifies the details of a room rate.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RoomRate</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ph:RoomRate">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2-0400:Taxes">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Taxes associated to the room rate.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2-0400:Fees">
                    <xsd:annotation>
                        <xsd:documentation source="Description">A fee associated to the room rate.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
            <xsd:attribute name="source" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the source of the rate (e.g. room block, negotiated rate, promotion).</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Promotion</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier ph:Identifier 0 (1)
RoomRateRef ph:RoomRateRef 0 (1)
Rate ph:Rate 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Taxes ota2-0400:Taxes 0 (1)
Fees ota2-0400:Fees 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID ph:objID Optional
effectiveDate ph:effectiveDate Required
expireDate ph:expireDate Optional
bookingCode ph:bookingCode Optional
expireDateExclusiveInd ph:expireDateExclusiveInd Optional
source ph:source Optional
Collapse Derivation Tree:
Collapse References:
ph:RoomRateDetail
