Documentation for Open Travel (OTA)
Definition Type: Element
Name: TelephoneSubGrp
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:Telephone
Containing Schema: Common_4_0_0.xsd
Abstract True
Documentation:
Information about a telephone number, including the actual number and its usage.

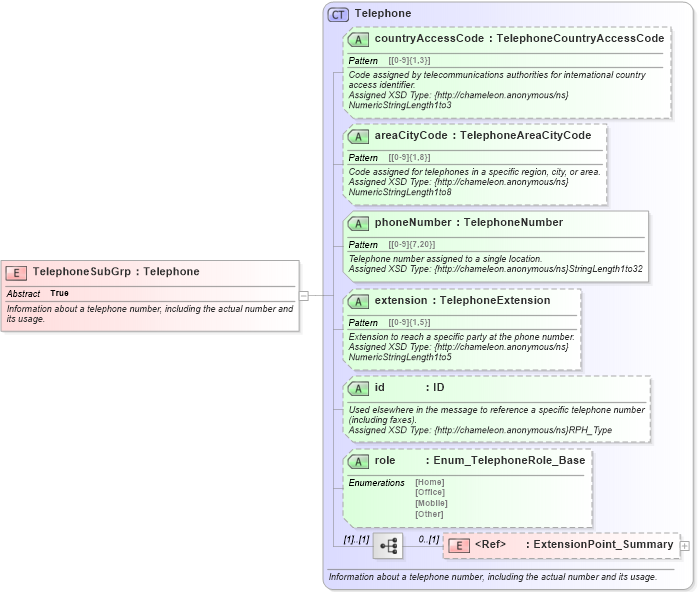

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into role in schema common_4_0_0_xsd Drilldown into id in schema common_4_0_0_xsd Drilldown into extension in schema common_4_0_0_xsd Drilldown into phoneNumber in schema common_4_0_0_xsd Drilldown into areaCityCode in schema common_4_0_0_xsd Drilldown into countryAccessCode in schema common_4_0_0_xsd Drilldown into Telephone in schema common_4_0_0_xsdXSD Diagram of TelephoneSubGrp in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element abstract="true" name="TelephoneSubGrp" type="ota2-0400:Telephone">
    <xsd:annotation>
        <xsd:documentation source="Description">Information about a telephone number, including the actual number and its usage.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Telephone</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
countryAccessCode ota2-0400:countryAccessCode Optional
areaCityCode ota2-0400:areaCityCode Optional
phoneNumber ota2-0400:phoneNumber Required
extension ota2-0400:extension Optional
id ota2-0400:id Optional
role ota2-0400:role (Optional)
Collapse Derivation Tree:
Documentation for Open Travel (OTA)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
