Definition Type: ComplexType
Name: Telephone
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
Information about a telephone number, including the actual number and its usage.

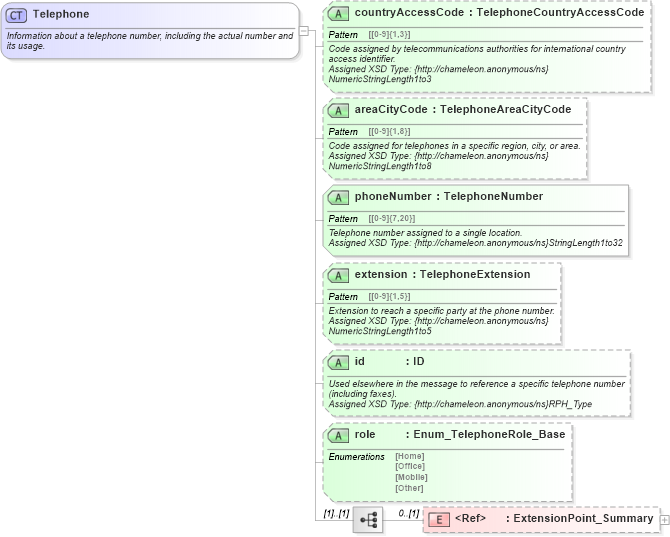

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into role in schema common_4_0_0_xsd Drilldown into id in schema common_4_0_0_xsd Drilldown into extension in schema common_4_0_0_xsd Drilldown into phoneNumber in schema common_4_0_0_xsd Drilldown into areaCityCode in schema common_4_0_0_xsd Drilldown into countryAccessCode in schema common_4_0_0_xsdXSD Diagram of Telephone in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Telephone">
    <xsd:annotation>
        <xsd:documentation source="Description">Information about a telephone number, including the actual number and its usage.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Telephone</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Summary" />
    </xsd:sequence>
    <xsd:attribute name="countryAccessCode" type="ota2-0400:TelephoneCountryAccessCode" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Code assigned by telecommunications authorities for international country access identifier.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}NumericStringLength1to3</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CountryAccessCode</otm:Equivalent>
                <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">01</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="areaCityCode" type="ota2-0400:TelephoneAreaCityCode" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Code assigned for telephones in a specific region, city, or area.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}NumericStringLength1to8</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">AreaCityCode</otm:Equivalent>
                <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">202</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="phoneNumber" type="ota2-0400:TelephoneNumber" use="required">
        <xsd:annotation>
            <xsd:documentation source="Description">Telephone number assigned to a single location.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to32</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">PhoneNumber</otm:Equivalent>
                <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">5555555</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="extension" type="ota2-0400:TelephoneExtension" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Extension to reach a specific party at the phone number.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}NumericStringLength1to5</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Extension</otm:Equivalent>
                <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">237</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="id" type="xsd:ID" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Used elsewhere in the message to reference a specific telephone number (including faxes).</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}RPH_Type</xsd:documentation>
            <xsd:appinfo>
                <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RPH</otm:Equivalent>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="role" type="ota2-0400:Enum_TelephoneRole_Base" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
countryAccessCode ota2-0400:countryAccessCode Optional
areaCityCode ota2-0400:areaCityCode Optional
phoneNumber ota2-0400:phoneNumber Required
extension ota2-0400:extension Optional
id ota2-0400:id Optional
role ota2-0400:role (Optional)
Collapse Derivation Tree:
Collapse References:
ota2-0400:Telephone, ota2-0400:Telephone_Detail, ota2-0400:TelephoneSubGrp, ota2-0400:TelephoneSummary
