Documentation for Open Travel (OTA)
Definition Type: Element
Name: VehicleDetail
Namespace: http://www.opentravel.org/OTM/product/Ground/v2
Type: pgt-0200:Vehicle_Detail
Containing Schema: Ground_2_0_0.xsd
Abstract

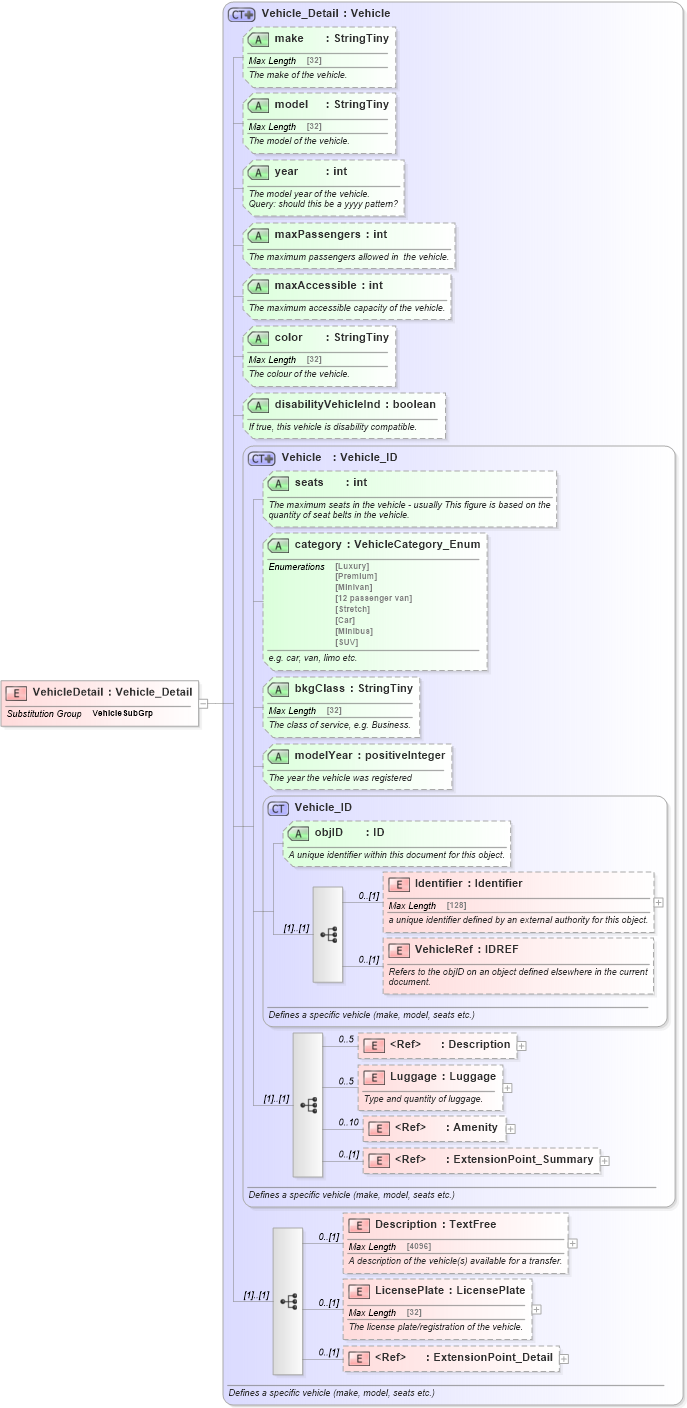

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into LicensePlate in schema ground_2_0_0_xsd Drilldown into Description in schema ground_2_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into Amenity in schema common_4_0_0_xsd Drilldown into Luggage in schema ground_2_0_0_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into VehicleRef in schema ground_2_0_0_xsd Drilldown into Identifier in schema ground_2_0_0_xsd Drilldown into objID in schema ground_2_0_0_xsd Drilldown into Vehicle_ID in schema ground_2_0_0_xsd Drilldown into modelYear in schema ground_2_0_0_xsd Drilldown into bkgClass in schema ground_2_0_0_xsd Drilldown into category in schema ground_2_0_0_xsd Drilldown into seats in schema ground_2_0_0_xsd Drilldown into Vehicle in schema ground_2_0_0_xsd Drilldown into disabilityVehicleInd in schema ground_2_0_0_xsd Drilldown into color in schema ground_2_0_0_xsd Drilldown into maxAccessible in schema ground_2_0_0_xsd Drilldown into maxPassengers in schema ground_2_0_0_xsd Drilldown into year in schema ground_2_0_0_xsd Drilldown into model in schema ground_2_0_0_xsd Drilldown into make in schema ground_2_0_0_xsd Drilldown into Vehicle_Detail in schema ground_2_0_0_xsdXSD Diagram of VehicleDetail in schema ground_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="VehicleDetail" substitutionGroup="pgt-0200:VehicleSubGrp" type="pgt-0200:Vehicle_Detail" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier pgt-0200:Identifier 0 (1)
VehicleRef pgt-0200:VehicleRef 0 (1)
Description ota2-0400:Description 0 5
Luggage pgt-0200:Luggage 0 5
Amenity ota2-0400:Amenity 0 10
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Description pgt-0200:Description 0 (1)
LicensePlate pgt-0200:LicensePlate 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID pgt-0200:objID Optional
seats pgt-0200:seats Optional
category pgt-0200:category Optional
bkgClass pgt-0200:bkgClass Optional
modelYear pgt-0200:modelYear Optional
make pgt-0200:make Optional
model pgt-0200:model Optional
year pgt-0200:year Optional
maxPassengers pgt-0200:maxPassengers Optional
maxAccessible pgt-0200:maxAccessible Optional
color pgt-0200:color Optional
disabilityVehicleInd pgt-0200:disabilityVehicleInd Optional
Collapse Derivation Tree:
Collapse References:
pgt-0200:VehicleSubGrp
