Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: GeographicData
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Type: commons:SimpleGeographicData
Containing Schema: RETSCommons.xsd
Abstract

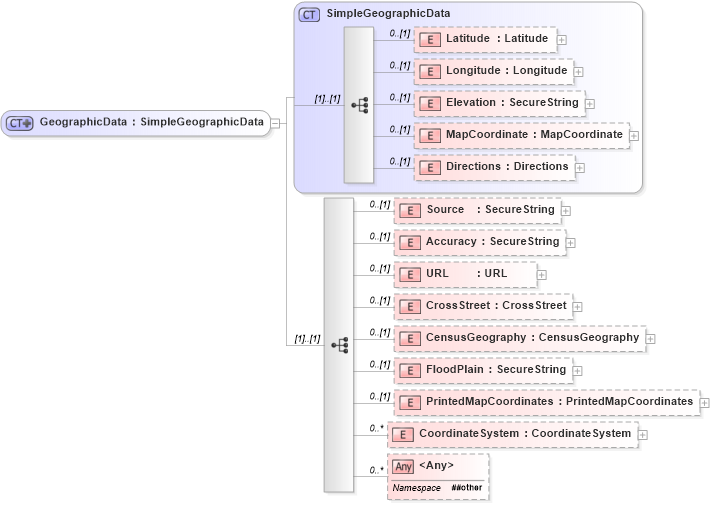

Collapse XSD Schema Diagram:
Drilldown into CoordinateSystem in schema retscommons_xsd Drilldown into PrintedMapCoordinates in schema retscommons_xsd Drilldown into FloodPlain in schema retscommons_xsd Drilldown into CensusGeography in schema retscommons_xsd Drilldown into CrossStreet in schema retscommons_xsd Drilldown into URL in schema retscommons_xsd Drilldown into Accuracy in schema retscommons_xsd Drilldown into Source in schema retscommons_xsd Drilldown into Directions in schema retscommons_xsd Drilldown into MapCoordinate in schema retscommons_xsd Drilldown into Elevation in schema retscommons_xsd Drilldown into Longitude in schema retscommons_xsd Drilldown into Latitude in schema retscommons_xsd Drilldown into SimpleGeographicData in schema retscommons_xsdXSD Diagram of GeographicData in schema retscommons_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="GeographicData">
    <xs:complexContent>
        <xs:extension base="commons:SimpleGeographicData">
            <xs:sequence>
                <xs:element name="Source" type="commons:SecureString" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="Accuracy" type="commons:SecureString" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="URL" type="commons:URL" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="CrossStreet" type="commons:CrossStreet" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="CensusGeography" type="commons:CensusGeography" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="FloodPlain" type="commons:SecureString" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="PrintedMapCoordinates" type="commons:PrintedMapCoordinates" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:element name="CoordinateSystem" type="commons:CoordinateSystem" minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                        <xs:appinfo>
                            <retsid />
                            <example />
                        </xs:appinfo>
                    </xs:annotation>
                </xs:element>
                <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Latitude commons:Latitude 0 (1)
Longitude commons:Longitude 0 (1)
Elevation commons:Elevation 0 (1)
MapCoordinate commons:MapCoordinate 0 (1)
Directions commons:Directions 0 (1)
Source commons:Source 0 (1)
Accuracy commons:Accuracy 0 (1)
URL commons:URL 0 (1)
CrossStreet commons:CrossStreet 0 (1)
CensusGeography commons:CensusGeography 0 (1)
FloodPlain commons:FloodPlain 0 (1)
PrintedMapCoordinates commons:PrintedMapCoordinates 0 (1)
CoordinateSystem commons:CoordinateSystem 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
prop:GeographicData
