Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: InvestmentType
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Containing Schema: Financial.xsd
Abstract

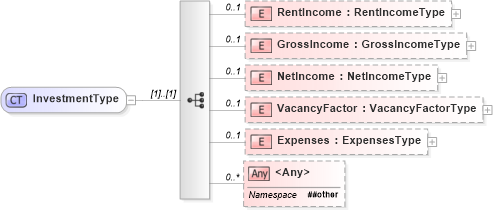

Collapse XSD Schema Diagram:
Drilldown into Expenses in schema financial_xsd Drilldown into VacancyFactor in schema financial_xsd Drilldown into NetIncome in schema financial_xsd Drilldown into GrossIncome in schema financial_xsd Drilldown into RentIncome in schema financial_xsdXSD Diagram of InvestmentType in schema financial_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="InvestmentType">
    <xs:sequence>
        <xs:element name="RentIncome" type="commons:RentIncomeType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100105</retsid>
                    <example>
                    </example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="GrossIncome" type="commons:GrossIncomeType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100106</retsid>
                    <example>
                    </example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="NetIncome" type="commons:NetIncomeType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100107</retsid>
                    <example>
                    </example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="VacancyFactor" type="commons:VacancyFactorType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100108</retsid>
                    <example>
                    </example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Expenses" type="commons:ExpensesType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100109</retsid>
                    <example>
                    </example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RentIncome commons:RentIncome 0 1
GrossIncome commons:GrossIncome 0 1
NetIncome commons:NetIncome 0 1
VacancyFactor commons:VacancyFactor 0 1
Expenses commons:Expenses 0 1
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
Collapse References:
commons:Investment
