Definition Type: Element
Name: Listing
Namespace: http://rets.org/xsd/Listings/2007-08
Type: list:ListingType
Containing Schema: Listings.xsd
Abstract

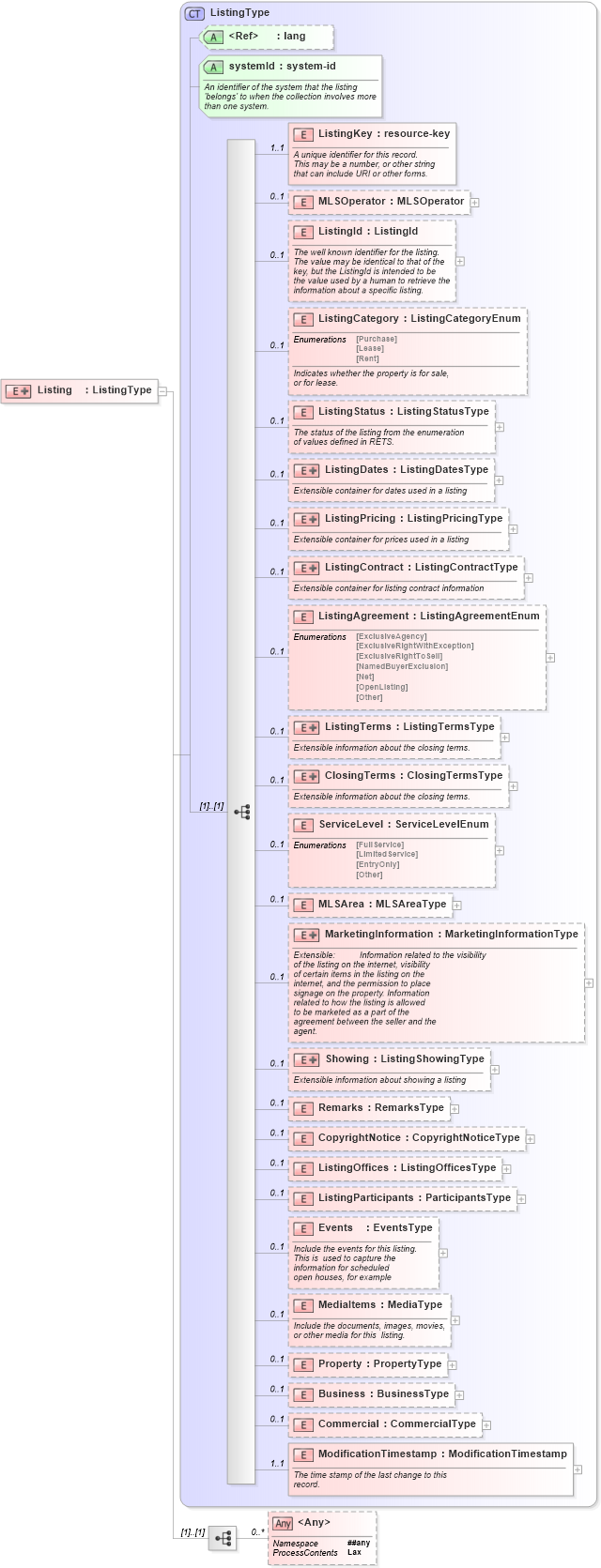

Collapse XSD Schema Diagram:
Drilldown into ModificationTimestamp in schema listings_xsd Drilldown into Commercial in schema listings_xsd Drilldown into Business in schema listings_xsd Drilldown into Property in schema listings_xsd Drilldown into MediaItems in schema listings_xsd Drilldown into Events in schema listings_xsd Drilldown into ListingParticipants in schema listings_xsd Drilldown into ListingOffices in schema listings_xsd Drilldown into CopyrightNotice in schema listings_xsd Drilldown into Remarks in schema listings_xsd Drilldown into Showing in schema listings_xsd Drilldown into MarketingInformation in schema listings_xsd Drilldown into MLSArea in schema listings_xsd Drilldown into ServiceLevel in schema listings_xsd Drilldown into ClosingTerms in schema listings_xsd Drilldown into ListingTerms in schema listings_xsd Drilldown into ListingAgreement in schema listings_xsd Drilldown into ListingContract in schema listings_xsd Drilldown into ListingPricing in schema listings_xsd Drilldown into ListingDates in schema listings_xsd Drilldown into ListingStatus in schema listings_xsd Drilldown into ListingCategory in schema listings_xsd Drilldown into ListingId in schema listings_xsd Drilldown into MLSOperator in schema listings_xsd Drilldown into ListingKey in schema listings_xsd Drilldown into systemId in schema listings_xsd Drilldown into lang in schema xml_xsd Drilldown into ListingType in schema listings_xsdXSD Diagram of Listing in schema listings_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:element name="Listing">
    <xs:annotation>
        <xs:documentation>
        </xs:documentation>
        <xs:appinfo>
            <retsid>100377</retsid>
        </xs:appinfo>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="list:ListingType">
                <xs:sequence>
                    <xs:any namespace="##any" processContents="lax" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ListingKey list:ListingKey 1 1
MLSOperator list:MLSOperator 0 1
ListingId list:ListingId 0 1
ListingCategory list:ListingCategory 0 1
ListingStatus list:ListingStatus 0 1
ListingDates list:ListingDates 0 1
ListingPricing list:ListingPricing 0 1
ListingContract list:ListingContract 0 1
ListingAgreement list:ListingAgreement 0 1
ListingTerms list:ListingTerms 0 1
ClosingTerms list:ClosingTerms 0 1
ServiceLevel list:ServiceLevel 0 1
MLSArea list:MLSArea 0 1
MarketingInformation list:MarketingInformation 0 1
Showing list:Showing 0 1
Remarks list:Remarks 0 1
CopyrightNotice list:CopyrightNotice 0 1
ListingOffices list:ListingOffices 0 1
ListingParticipants list:ListingParticipants 0 1
Events list:Events 0 1
MediaItems list:MediaItems 0 1
Property list:Property 0 1
Business list:Business 0 1
Commercial list:Commercial 0 1
ModificationTimestamp list:ModificationTimestamp 1 1
<xs:any> Allowed namespace: '##any' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
lang xml:lang Optional
systemId list:systemId Required
Collapse Derivation Tree:
