Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: OfficeTransmittal
Namespace: http://rets.org/xsd/OfficeTransmittal/2007-08
Containing Schema: OfficeTransmittals.xsd
Abstract

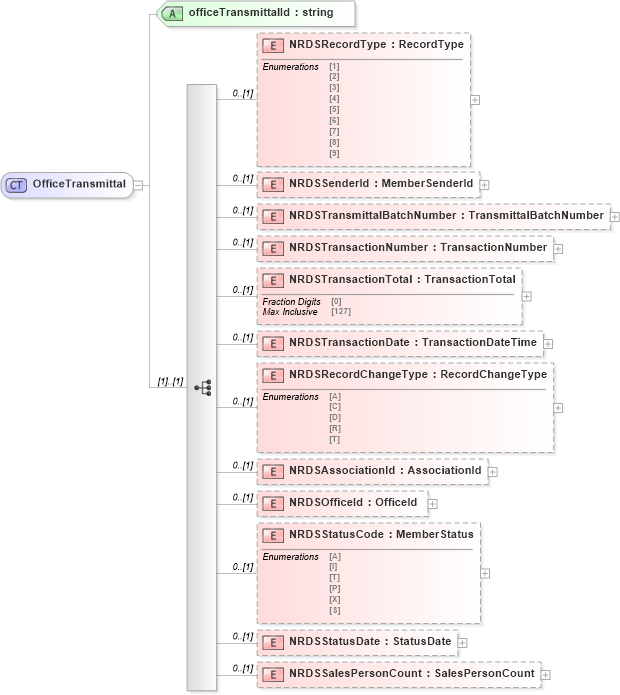

Collapse XSD Schema Diagram:
Drilldown into NRDSSalesPersonCount in schema officetransmittals_xsd Drilldown into NRDSStatusDate in schema officetransmittals_xsd Drilldown into NRDSStatusCode in schema officetransmittals_xsd Drilldown into NRDSOfficeId in schema officetransmittals_xsd Drilldown into NRDSAssociationId in schema officetransmittals_xsd Drilldown into NRDSRecordChangeType in schema officetransmittals_xsd Drilldown into NRDSTransactionDate in schema officetransmittals_xsd Drilldown into NRDSTransactionTotal in schema officetransmittals_xsd Drilldown into NRDSTransactionNumber in schema officetransmittals_xsd Drilldown into NRDSTransmittalBatchNumber in schema officetransmittals_xsd Drilldown into NRDSSenderId in schema officetransmittals_xsd Drilldown into NRDSRecordType in schema officetransmittals_xsd Drilldown into officeTransmittalId in schema officetransmittals_xsdXSD Diagram of OfficeTransmittal in schema officetransmittals_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="OfficeTransmittal">
    <xs:sequence>
        <xs:element name="NRDSRecordType" type="nrds:RecordType" minOccurs="0" />
        <xs:element name="NRDSSenderId" type="nrds:MemberSenderId" minOccurs="0" />
        <xs:element name="NRDSTransmittalBatchNumber" type="nrds:TransmittalBatchNumber" minOccurs="0" />
        <xs:element name="NRDSTransactionNumber" type="nrds:TransactionNumber" minOccurs="0" />
        <xs:element name="NRDSTransactionTotal" type="nrds:TransactionTotal" minOccurs="0" />
        <xs:element name="NRDSTransactionDate" type="nrds:TransactionDateTime" minOccurs="0" />
        <xs:element name="NRDSRecordChangeType" type="nrds:RecordChangeType" minOccurs="0" />
        <xs:element name="NRDSAssociationId" type="nrds:AssociationId" minOccurs="0" />
        <xs:element name="NRDSOfficeId" type="commons:OfficeId" minOccurs="0" />
        <xs:element name="NRDSStatusCode" type="nrds:MemberStatus" minOccurs="0" />
        <xs:element name="NRDSStatusDate" type="nrds:StatusDate" minOccurs="0" />
        <xs:element name="NRDSSalesPersonCount" type="nrds:SalesPersonCount" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="officeTransmittalId" type="xs:string" use="required" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NRDSRecordType otrans:NRDSRecordType 0 (1)
NRDSSenderId otrans:NRDSSenderId 0 (1)
NRDSTransmittalBatchNumber otrans:NRDSTransmittalBatchNumber 0 (1)
NRDSTransactionNumber otrans:NRDSTransactionNumber 0 (1)
NRDSTransactionTotal otrans:NRDSTransactionTotal 0 (1)
NRDSTransactionDate otrans:NRDSTransactionDate 0 (1)
NRDSRecordChangeType otrans:NRDSRecordChangeType 0 (1)
NRDSAssociationId otrans:NRDSAssociationId 0 (1)
NRDSOfficeId otrans:NRDSOfficeId 0 (1)
NRDSStatusCode otrans:NRDSStatusCode 0 (1)
NRDSStatusDate otrans:NRDSStatusDate 0 (1)
NRDSSalesPersonCount otrans:NRDSSalesPersonCount 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
officeTransmittalId otrans:officeTransmittalId Required
Collapse Derivation Tree:
Collapse References:
otrans:OfficeTransmittal
