Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: SecurePhone
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Type: commons:Phone
Containing Schema: ContactMethods.xsd
Abstract

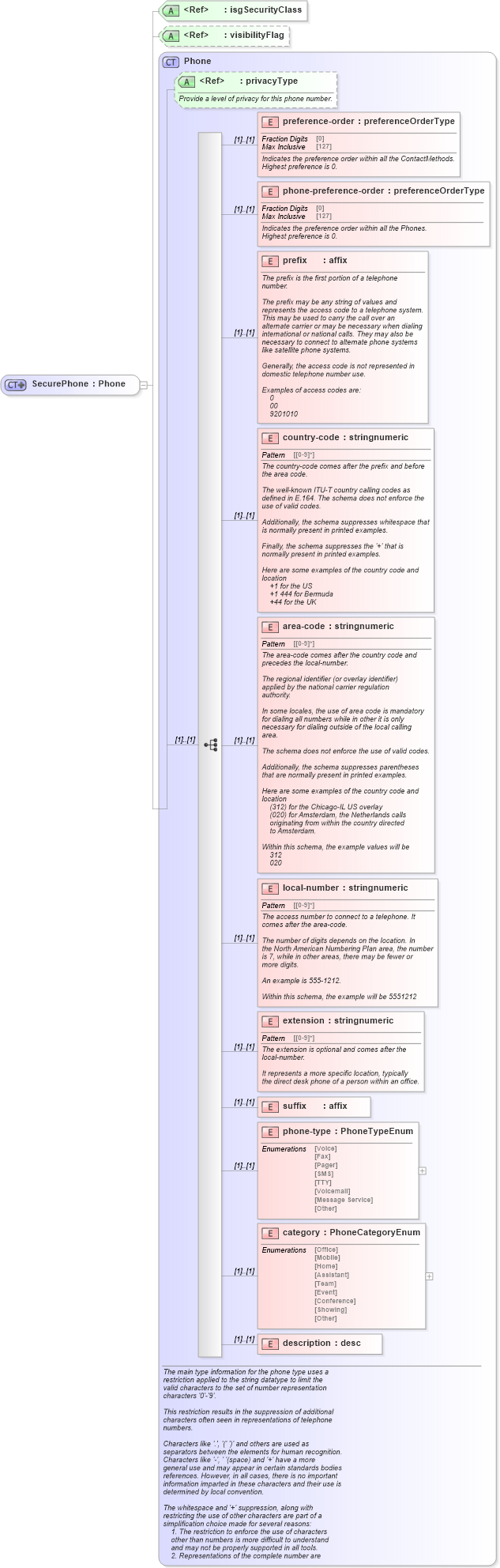

Collapse XSD Schema Diagram:
Drilldown into description in schema contactmethods_xsd Drilldown into category in schema contactmethods_xsd Drilldown into phone-type in schema contactmethods_xsd Drilldown into suffix in schema contactmethods_xsd Drilldown into extension in schema contactmethods_xsd Drilldown into local-number in schema contactmethods_xsd Drilldown into area-code in schema contactmethods_xsd Drilldown into country-code in schema contactmethods_xsd Drilldown into prefix in schema contactmethods_xsd Drilldown into phone-preference-order in schema contactmethods_xsd Drilldown into preference-order in schema contactmethods_xsd Drilldown into privacyType in schema primitives_xsd Drilldown into Phone in schema contactmethods_xsd Drilldown into visibilityFlag in schema primitives_xsd Drilldown into isgSecurityClass in schema primitives_xsdXSD Diagram of SecurePhone in schema contactmethods_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="SecurePhone">
    <xs:complexContent>
        <xs:extension base="commons:Phone">
            <xs:attribute ref="commons:isgSecurityClass" use="required">
                <xs:annotation>
                    <xs:appinfo>
                        <retsid>100059</retsid>
                        <example>
                        </example>
                    </xs:appinfo>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute ref="commons:visibilityFlag" use="optional">
                <xs:annotation>
                    <xs:appinfo>
                        <retsid>100060</retsid>
                        <example>
                        </example>
                    </xs:appinfo>
                </xs:annotation>
            </xs:attribute>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
preference-order commons:preference-order (1) (1)
phone-preference-order commons:phone-preference-order (1) (1)
prefix commons:prefix (1) (1)
country-code commons:country-code (1) (1)
area-code commons:area-code (1) (1)
local-number commons:local-number (1) (1)
extension commons:extension (1) (1)
suffix commons:suffix (1) (1)
phone-type commons:phone-type (1) (1)
category commons:category (1) (1)
description commons:description (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
privacyType commons:privacyType Optional
isgSecurityClass commons:isgSecurityClass Required
visibilityFlag commons:visibilityFlag Optional
Collapse Derivation Tree:
