Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: IncentiveApplicationDetailType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: IncentiveApplication.xsd
Abstract
Documentation:
Incentive Applicaton Detail information

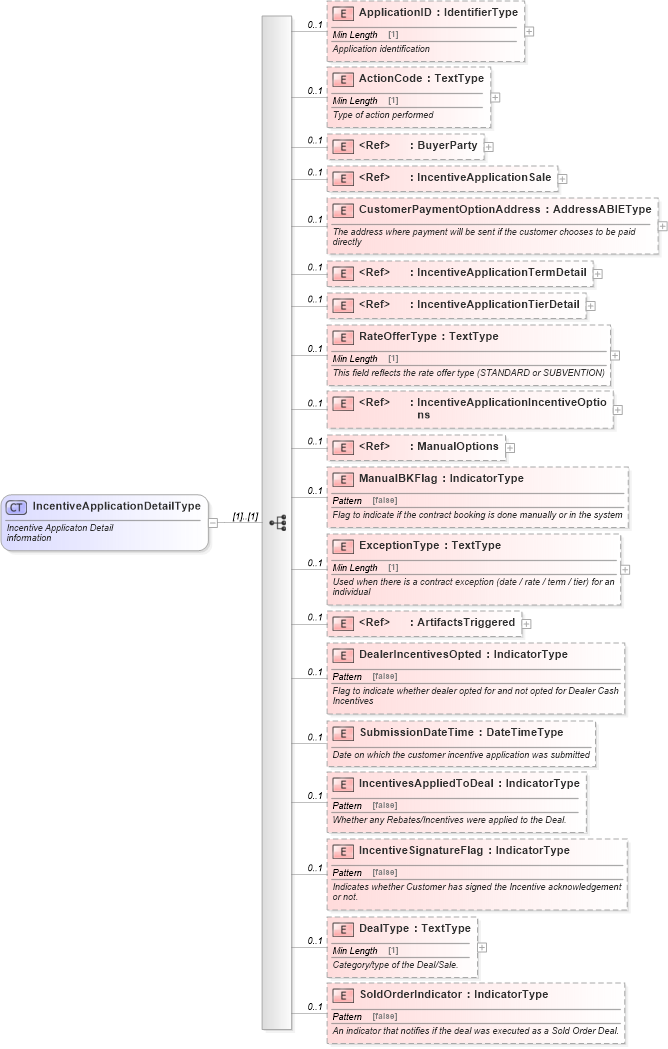

Collapse XSD Schema Diagram:
Drilldown into SoldOrderIndicator in schema incentiveapplication_xsd Drilldown into DealType in schema incentiveapplication_xsd Drilldown into IncentiveSignatureFlag in schema incentiveapplication_xsd Drilldown into IncentivesAppliedToDeal in schema incentiveapplication_xsd Drilldown into SubmissionDateTime in schema incentiveapplication_xsd Drilldown into DealerIncentivesOpted in schema incentiveapplication_xsd Drilldown into ArtifactsTriggered in schema incentiveapplication_xsd Drilldown into ExceptionType in schema incentiveapplication_xsd Drilldown into ManualBKFlag in schema incentiveapplication_xsd Drilldown into ManualOptions in schema incentiveapplication_xsd Drilldown into IncentiveApplicationIncentiveOptions in schema incentiveapplication_xsd Drilldown into RateOfferType in schema incentiveapplication_xsd Drilldown into IncentiveApplicationTierDetail in schema incentiveapplication_xsd Drilldown into IncentiveApplicationTermDetail in schema incentiveapplication_xsd Drilldown into CustomerPaymentOptionAddress in schema incentiveapplication_xsd Drilldown into IncentiveApplicationSale in schema incentiveapplication_xsd Drilldown into BuyerParty in schema components_xsd Drilldown into ActionCode in schema incentiveapplication_xsd Drilldown into ApplicationID in schema incentiveapplication_xsdXSD Diagram of IncentiveApplicationDetailType in schema incentiveapplication_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="IncentiveApplicationDetailType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Incentive Applicaton Detail
				information</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="0" name="ApplicationID" type="udt:IdentifierType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Application identification
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="ActionCode" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Type of action performed
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="BuyerParty" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element ref="IncentiveApplicationSale" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="CustomerPaymentOptionAddress" type="AddressABIEType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						The address where payment will be sent if the customer chooses to be paid directly
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IncentiveApplicationTermDetail" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element ref="IncentiveApplicationTierDetail" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="RateOfferType" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						This field reflects the rate offer type (STANDARD or SUBVENTION)
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IncentiveApplicationIncentiveOptions" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element ref="ManualOptions" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="ManualBKFlag" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Flag to indicate if the contract booking is done manually or in the system
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ExceptionType" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Used when there is a contract exception (date / rate / term / tier) for an individual
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ArtifactsTriggered" minOccurs="0" maxOccurs="1" />
        <xsd:element name="DealerIncentivesOpted" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Flag to indicate whether dealer opted for and not opted for Dealer Cash Incentives
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SubmissionDateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Date on which the customer incentive application was submitted
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IncentivesAppliedToDeal" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Whether any Rebates/Incentives were applied to the Deal.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IncentiveSignatureFlag" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Indicates whether Customer has signed the Incentive acknowledgement or not.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DealType" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						Category/type of the Deal/Sale.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SoldOrderIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
						An indicator that notifies if the deal was executed as a Sold Order Deal.
					</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationID star:ApplicationID 0 1
ActionCode star:ActionCode 0 1
BuyerParty star:BuyerParty 0 1
IncentiveApplicationSale star:IncentiveApplicationSale 0 1
CustomerPaymentOptionAddress star:CustomerPaymentOptionAddress 0 1
IncentiveApplicationTermDetail star:IncentiveApplicationTermDetail 0 1
IncentiveApplicationTierDetail star:IncentiveApplicationTierDetail 0 1
RateOfferType star:RateOfferType 0 1
IncentiveApplicationIncentiveOptions star:IncentiveApplicationIncentiveOptions 0 1
ManualOptions star:ManualOptions 0 1
ManualBKFlag star:ManualBKFlag 0 1
ExceptionType star:ExceptionType 0 1
ArtifactsTriggered star:ArtifactsTriggered 0 1
DealerIncentivesOpted star:DealerIncentivesOpted 0 1
SubmissionDateTime star:SubmissionDateTime 0 1
IncentivesAppliedToDeal star:IncentivesAppliedToDeal 0 1
IncentiveSignatureFlag star:IncentiveSignatureFlag 0 1
DealType star:DealType 0 1
SoldOrderIndicator star:SoldOrderIndicator 0 1
Collapse Derivation Tree:
Collapse References:
star:IncentiveApplicationDetail
