Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartsDispositionHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsDispositionHeaderType
Containing Schema: PartsDisposition.xsd
Abstract
Documentation:
Parts Disposition Header

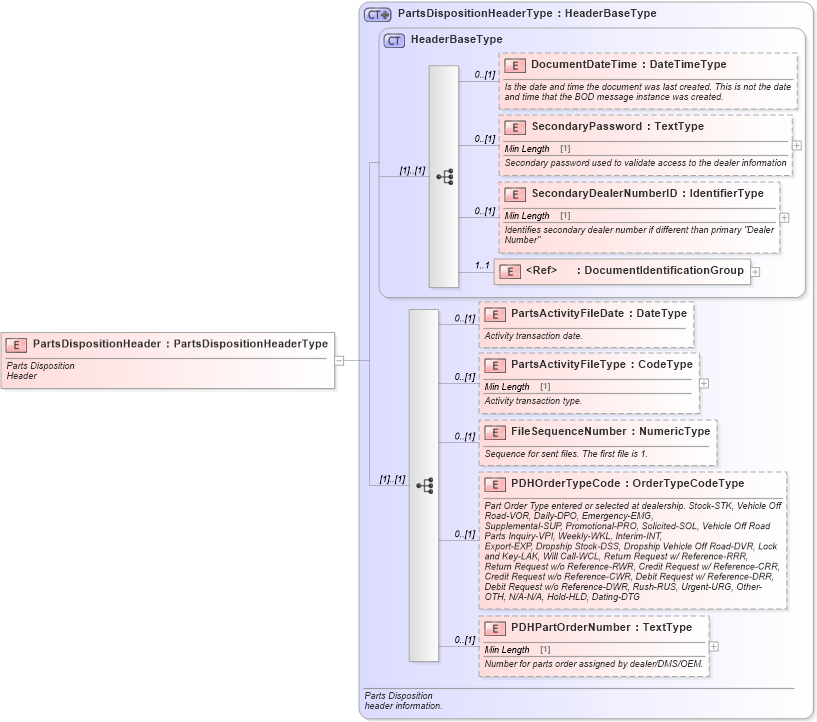

Collapse XSD Schema Diagram:
Drilldown into PDHPartOrderNumber in schema partsdisposition_xsd Drilldown into PDHOrderTypeCode in schema partsdisposition_xsd Drilldown into FileSequenceNumber in schema partsdisposition_xsd Drilldown into PartsActivityFileType in schema partsdisposition_xsd Drilldown into PartsActivityFileDate in schema partsdisposition_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into PartsDispositionHeaderType in schema partsdisposition_xsdXSD Diagram of PartsDispositionHeader in schema partsdisposition_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsDispositionHeader" type="PartsDispositionHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Parts Disposition
				Header</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
PartsActivityFileDate star:PartsActivityFileDate 0 (1)
PartsActivityFileType star:PartsActivityFileType 0 (1)
FileSequenceNumber star:FileSequenceNumber 0 (1)
PDHOrderTypeCode star:PDHOrderTypeCode 0 (1)
PDHPartOrderNumber star:PDHPartOrderNumber 0 (1)
Collapse Derivation Tree:
