Definition Type: ComplexType
Name: PartsDispositionHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: PartsDisposition.xsd
Abstract
Documentation:
Parts Disposition header information.

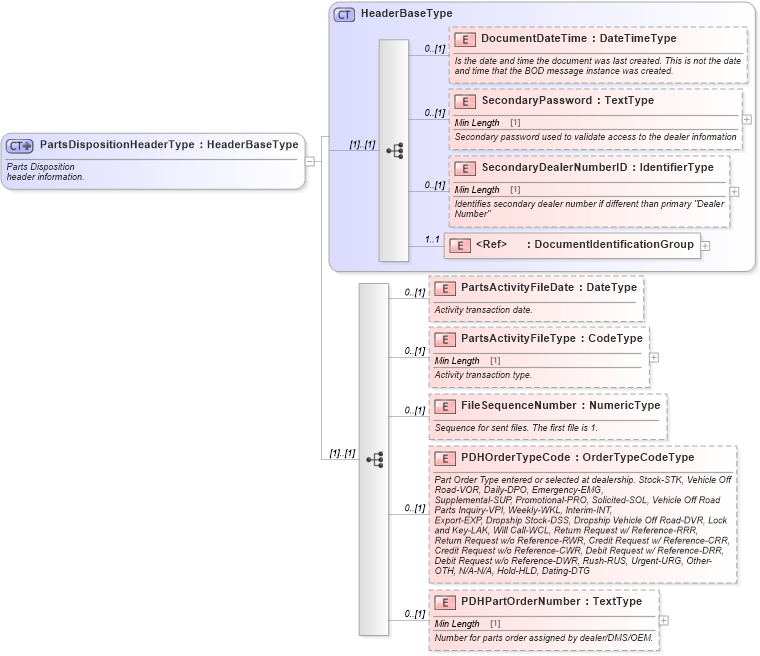

Collapse XSD Schema Diagram:
Drilldown into PDHPartOrderNumber in schema partsdisposition_xsd Drilldown into PDHOrderTypeCode in schema partsdisposition_xsd Drilldown into FileSequenceNumber in schema partsdisposition_xsd Drilldown into PartsActivityFileType in schema partsdisposition_xsd Drilldown into PartsActivityFileDate in schema partsdisposition_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of PartsDispositionHeaderType in schema partsdisposition_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsDispositionHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts Disposition
				header information.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <xsd:element name="PartsActivityFileDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Activity transaction date.
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PartsActivityFileType" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Activity transaction type.
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FileSequenceNumber" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Sequence for sent files. The first file is 1.
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PDHOrderTypeCode" type="sqdt:OrderTypeCodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Part Order Type entered or selected at dealership. Stock-STK, Vehicle Off Road-VOR, Daily-DPO, Emergency-EMG,
								Supplemental-SUP, Promotional-PRO, Solicited-SOL, Vehicle Off Road Parts Inquiry-VPI, Weekly-WKL, Interim-INT,
								Export-EXP, Dropship Stock-DSS, Dropship Vehicle Off Road-DVR, Lock and Key-LAK, Will Call-WCL, Return Request w/ Reference-RRR,
								Return Request w/o Reference-RWR, Credit Request w/ Reference-CRR, Credit Request w/o Reference-CWR, Debit Request w/ Reference-DRR,
								Debit Request w/o Reference-DWR, Rush-RUS, Urgent-URG, Other-OTH, N/A-N/A, Hold-HLD, Dating-DTG
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PDHPartOrderNumber" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
								Number for parts order assigned by dealer/DMS/OEM.
							</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
PartsActivityFileDate star:PartsActivityFileDate 0 (1)
PartsActivityFileType star:PartsActivityFileType 0 (1)
FileSequenceNumber star:FileSequenceNumber 0 (1)
PDHOrderTypeCode star:PDHOrderTypeCode 0 (1)
PDHPartOrderNumber star:PDHPartOrderNumber 0 (1)
Collapse Derivation Tree:
Collapse References:
star:PartsDispositionHeader
