Definition Type: Element
Name: PartsInventoryHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsInventoryHeaderType
Containing Schema: PartsInventory.xsd
Abstract
Documentation:
For each PartsInventory represented in the DataArea of the PartsInventory BOD, there must be once occurrence of the Header Component. The Header component represents summary information that applies to the entire Parts Inventory transaction.

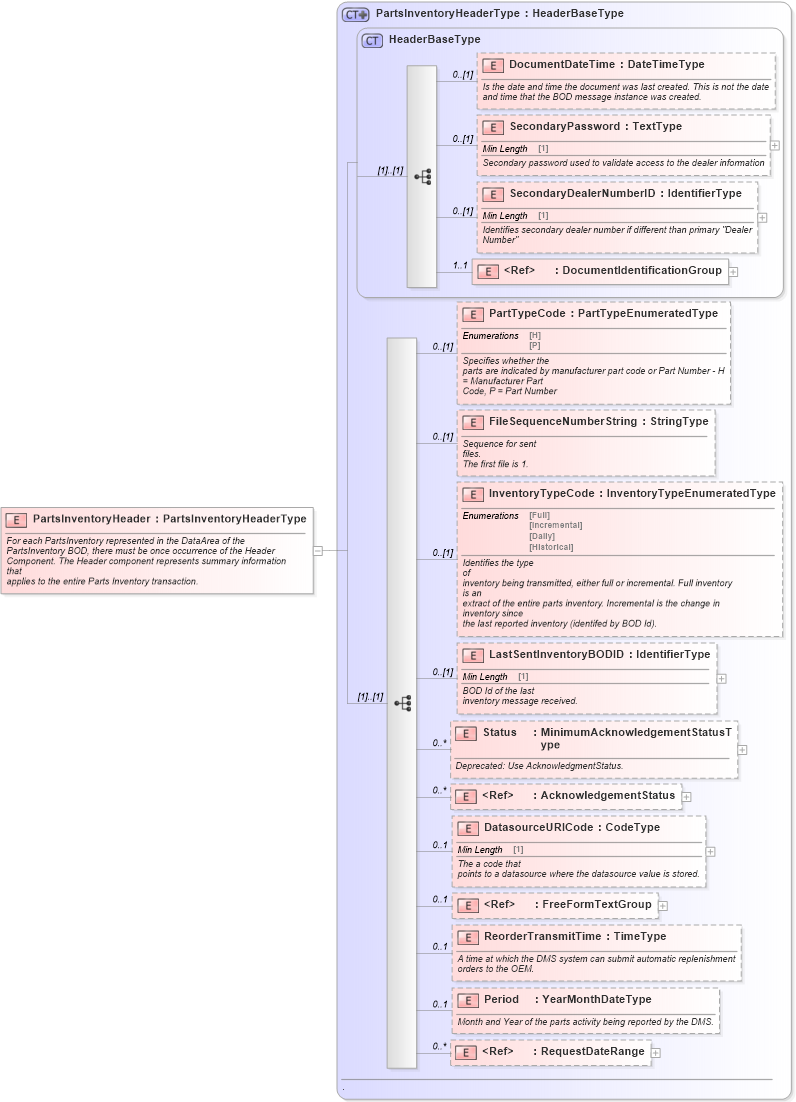

Collapse XSD Schema Diagram:
Drilldown into RequestDateRange in schema components_xsd Drilldown into Period in schema partsinventory_xsd Drilldown into ReorderTransmitTime in schema partsinventory_xsd Drilldown into FreeFormTextGroup in schema components_xsd Drilldown into DatasourceURICode in schema partsinventory_xsd Drilldown into AcknowledgementStatus in schema components_xsd Drilldown into Status in schema partsinventory_xsd Drilldown into LastSentInventoryBODID in schema partsinventory_xsd Drilldown into InventoryTypeCode in schema partsinventory_xsd Drilldown into FileSequenceNumberString in schema partsinventory_xsd Drilldown into PartTypeCode in schema partsinventory_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into PartsInventoryHeaderType in schema partsinventory_xsdXSD Diagram of PartsInventoryHeader in schema partsinventory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsInventoryHeader" type="PartsInventoryHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
				For each PartsInventory represented in the DataArea of the
				PartsInventory BOD, there must be once occurrence of the Header
				Component. The Header component represents summary information that
				applies to the entire Parts Inventory transaction.
			</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
PartTypeCode star:PartTypeCode 0 (1)
FileSequenceNumberString star:FileSequenceNumberString 0 (1)
InventoryTypeCode star:InventoryTypeCode 0 (1)
LastSentInventoryBODID star:LastSentInventoryBODID 0 (1)
Status star:Status 0 unbounded
AcknowledgementStatus star:AcknowledgementStatus 0 unbounded
DatasourceURICode star:DatasourceURICode 0 1
FreeFormTextGroup star:FreeFormTextGroup 0 1
ReorderTransmitTime star:ReorderTransmitTime 0 1
Period star:Period 0 1
RequestDateRange star:RequestDateRange 0 unbounded
Collapse Derivation Tree:
