<xsd:complexType name="PartsInventoryHeaderType">
<xsd:annotation xmlns="http://www.starstandards.org/STAR">
<xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
</xsd:annotation>
<xsd:complexContent>
<xsd:extension base="HeaderBaseType">
<xsd:sequence>
<xsd:element name="PartTypeCode" type="scl:PartTypeEnumeratedType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Specifies whether the
parts are indicated by manufacturer part code or Part Number - H
= Manufacturer Part
Code, P = Part Number</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FileSequenceNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Sequence for sent
files.
The first file is 1.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="InventoryTypeCode" type="scl:InventoryTypeEnumeratedType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the type
of
inventory being transmitted, either full or incremental. Full inventory
is an
extract of the entire parts inventory. Incremental is the change in
inventory since
the last reported inventory (identifed by BOD Id).
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastSentInventoryBODID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">BOD Id of the last
inventory message received.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Status" type="MinimumAcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Deprecated: Use AcknowledgmentStatus.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="AcknowledgementStatus" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="DatasourceURICode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The a code that
points to a datasource where the datasource value is stored.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="ReorderTransmitTime" type="udt:TimeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">
A time at which the DMS system can submit automatic replenishment orders to the OEM.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Period" type="qdt:YearMonthDateType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Month and Year of the parts activity being reported by the DMS.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="RequestDateRange" minOccurs="0" maxOccurs="unbounded">
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
|

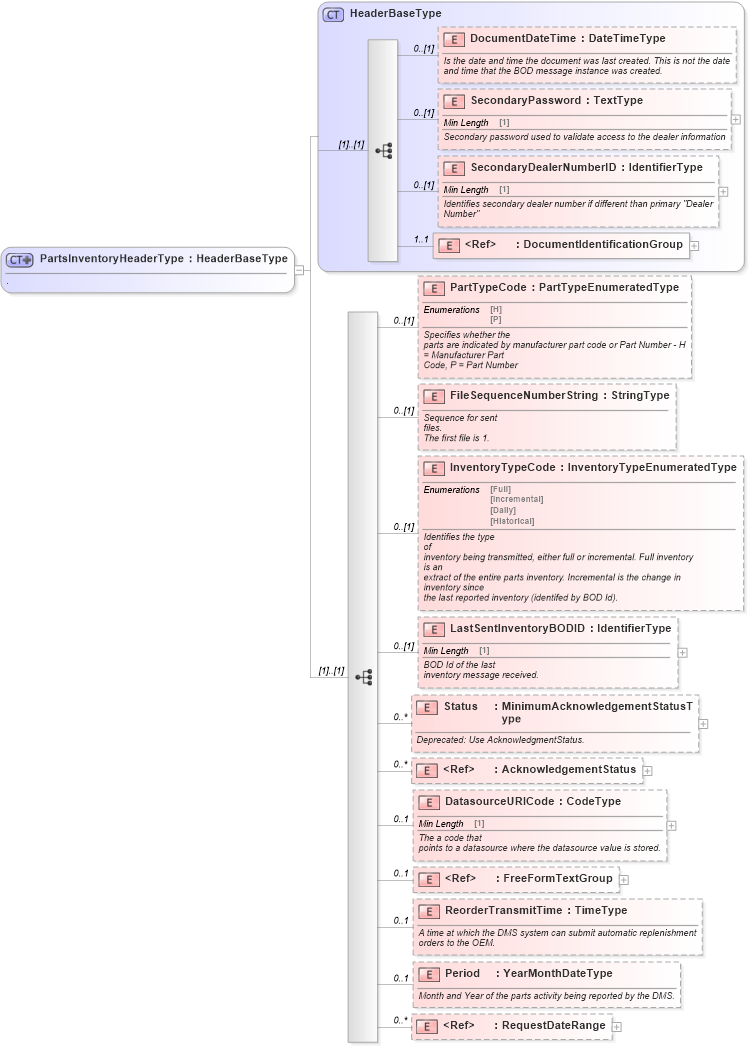

XSD Schema Diagram:
