Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VehicleInvoiceVehicleLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: VehicleInvoice.xsd
Abstract
Documentation:
.

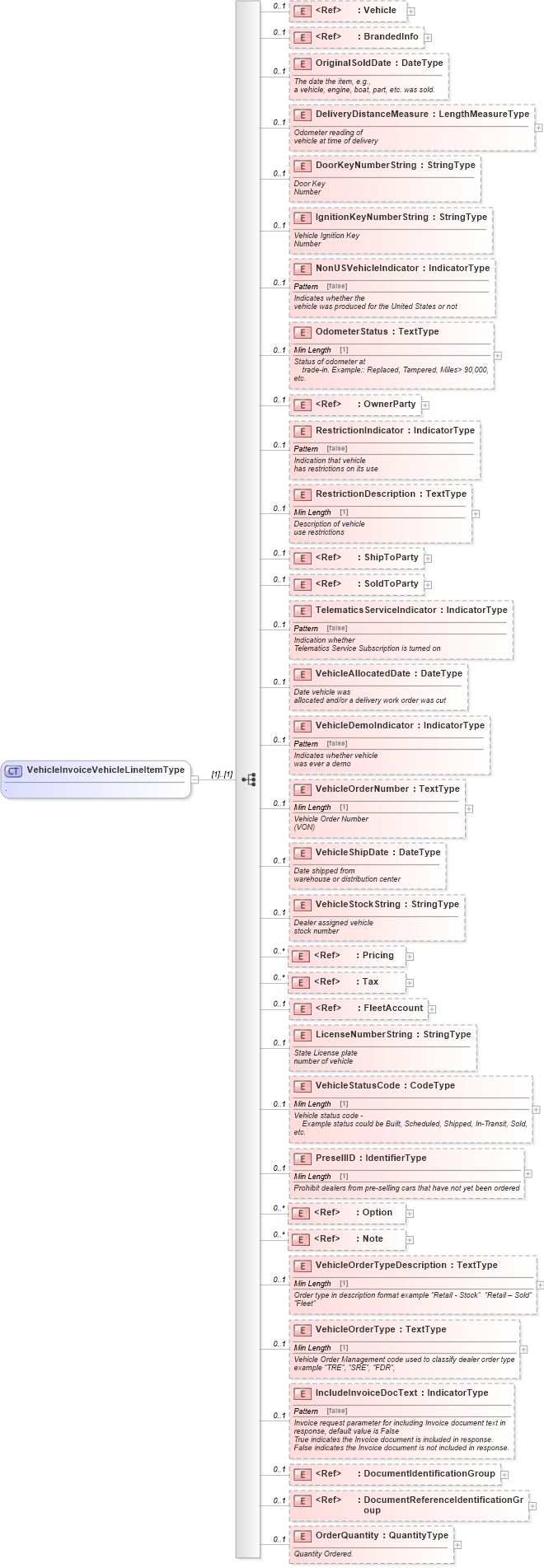

Collapse XSD Schema Diagram:
Drilldown into OrderQuantity in schema vehicleinvoice_xsd Drilldown into DocumentReferenceIdentificationGroup in schema components_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into IncludeInvoiceDocText in schema vehicleinvoice_xsd Drilldown into VehicleOrderType in schema vehicleinvoice_xsd Drilldown into VehicleOrderTypeDescription in schema vehicleinvoice_xsd Drilldown into Note in schema fields_xsd1 Drilldown into Option in schema components_xsd Drilldown into PresellID in schema vehicleinvoice_xsd Drilldown into VehicleStatusCode in schema vehicleinvoice_xsd Drilldown into LicenseNumberString in schema vehicleinvoice_xsd Drilldown into FleetAccount in schema components_xsd Drilldown into Tax in schema components_xsd Drilldown into Pricing in schema components_xsd Drilldown into VehicleStockString in schema vehicleinvoice_xsd Drilldown into VehicleShipDate in schema vehicleinvoice_xsd Drilldown into VehicleOrderNumber in schema vehicleinvoice_xsd Drilldown into VehicleDemoIndicator in schema vehicleinvoice_xsd Drilldown into VehicleAllocatedDate in schema vehicleinvoice_xsd Drilldown into TelematicsServiceIndicator in schema vehicleinvoice_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into RestrictionDescription in schema vehicleinvoice_xsd Drilldown into RestrictionIndicator in schema vehicleinvoice_xsd Drilldown into OwnerParty in schema components_xsd Drilldown into OdometerStatus in schema vehicleinvoice_xsd Drilldown into NonUSVehicleIndicator in schema vehicleinvoice_xsd Drilldown into IgnitionKeyNumberString in schema vehicleinvoice_xsd Drilldown into DoorKeyNumberString in schema vehicleinvoice_xsd Drilldown into DeliveryDistanceMeasure in schema vehicleinvoice_xsd Drilldown into OriginalSoldDate in schema vehicleinvoice_xsd Drilldown into BrandedInfo in schema components_xsd Drilldown into Vehicle in schema components_xsdXSD Diagram of VehicleInvoiceVehicleLineItemType in schema vehicleinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VehicleInvoiceVehicleLineItemType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BrandedInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element name="OriginalSoldDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the item, e.g.,
                a vehicle, engine, boat, part, etc. was sold.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle at time of delivery</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DoorKeyNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Door Key
            Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IgnitionKeyNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Ignition Key
                Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NonUSVehicleIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the
                vehicle was produced for the United States or not</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OdometerStatus" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Status of odometer at
                trade-in. Example:: Replaced, Tampered, Miles&gt; 90,000,
            etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OwnerParty" minOccurs="0" maxOccurs="1" />
        <xsd:element name="RestrictionIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication that vehicle
                has restrictions on its use</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Description of vehicle
                use restrictions</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ShipToParty" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SoldToParty" minOccurs="0" maxOccurs="1" />
        <xsd:element name="TelematicsServiceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication whether
                Telematics Service Subscription is turned on</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleAllocatedDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date vehicle was
                allocated and/or a delivery work order was cut</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleDemoIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether vehicle
                was ever a demo</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOrderNumber" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Order Number
                (VON)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleShipDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date shipped from
                warehouse or distribution center</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStockString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer assigned vehicle
                stock number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Pricing" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FleetAccount" minOccurs="0" maxOccurs="1" />
        <xsd:element name="LicenseNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">State License plate
                number of vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStatusCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle status code -
                Example status could be Built, Scheduled, Shipped, In-Transit, Sold,
            etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PresellID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Prohibit dealers from pre-selling cars that have not yet been ordered
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Option" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="oagis:Note" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="VehicleOrderTypeDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Order type in description format example “Retail - Stock”  “Retail – Sold”  “Fleet”
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleOrderType" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Order Management code used to classify dealer order type example “TRE”, “SRE”, “FDR”,
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IncludeInvoiceDocText" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Invoice request parameter for including Invoice document text in response, default value is False
                        True indicates the Invoice document is included in response.
                        False indicates the Invoice document is not included in response.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DocumentIdentificationGroup" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element ref="DocumentReferenceIdentificationGroup" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="OrderQuantity" type="udt:QuantityType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Quantity Ordered.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
BrandedInfo star:BrandedInfo 0 1
OriginalSoldDate star:OriginalSoldDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
DoorKeyNumberString star:DoorKeyNumberString 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
NonUSVehicleIndicator star:NonUSVehicleIndicator 0 1
OdometerStatus star:OdometerStatus 0 1
OwnerParty star:OwnerParty 0 1
RestrictionIndicator star:RestrictionIndicator 0 1
RestrictionDescription star:RestrictionDescription 0 1
ShipToParty star:ShipToParty 0 1
SoldToParty star:SoldToParty 0 1
TelematicsServiceIndicator star:TelematicsServiceIndicator 0 1
VehicleAllocatedDate star:VehicleAllocatedDate 0 1
VehicleDemoIndicator star:VehicleDemoIndicator 0 1
VehicleOrderNumber star:VehicleOrderNumber 0 1
VehicleShipDate star:VehicleShipDate 0 1
VehicleStockString star:VehicleStockString 0 1
Pricing star:Pricing 0 unbounded
Tax star:Tax 0 unbounded
FleetAccount star:FleetAccount 0 1
LicenseNumberString star:LicenseNumberString 0 1
VehicleStatusCode star:VehicleStatusCode 0 1
PresellID star:PresellID 0 1
Option star:Option 0 unbounded
Note oagis:Note 0 unbounded
VehicleOrderTypeDescription star:VehicleOrderTypeDescription 0 1
VehicleOrderType star:VehicleOrderType 0 1
IncludeInvoiceDocText star:IncludeInvoiceDocText 0 1
DocumentIdentificationGroup star:DocumentIdentificationGroup 0 1
DocumentReferenceIdentificationGroup star:DocumentReferenceIdentificationGroup 0 1
OrderQuantity star:OrderQuantity 0 1
Collapse Derivation Tree:
Collapse References:
star:VehicleInvoiceVehicleLineItem
