Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: AddressType
Namespace: http://www.openapplications.org/oagis/9
Type: oagis:AddressBaseType
Containing Schema: Components.xsd
Abstract

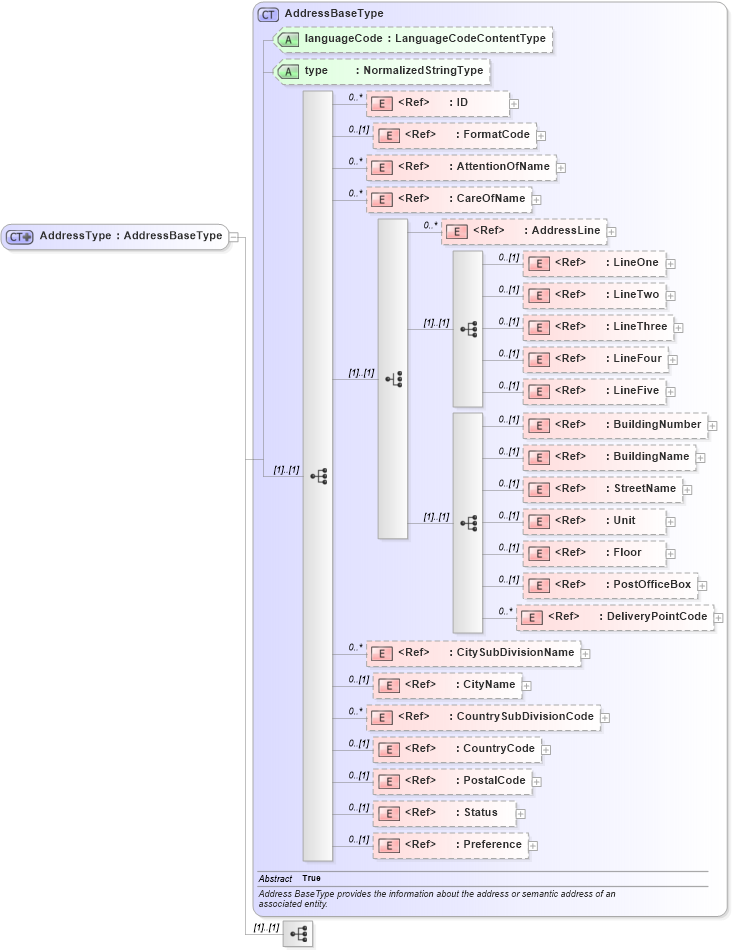

Collapse XSD Schema Diagram:
Drilldown into Preference in schema components_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into PostalCode in schema fields_xsd1 Drilldown into CountryCode in schema fields_xsd1 Drilldown into CountrySubDivisionCode in schema fields_xsd1 Drilldown into CityName in schema fields_xsd1 Drilldown into CitySubDivisionName in schema fields_xsd1 Drilldown into DeliveryPointCode in schema fields_xsd1 Drilldown into PostOfficeBox in schema fields_xsd1 Drilldown into Floor in schema fields_xsd1 Drilldown into Unit in schema fields_xsd1 Drilldown into StreetName in schema fields_xsd1 Drilldown into BuildingName in schema fields_xsd1 Drilldown into BuildingNumber in schema fields_xsd1 Drilldown into LineFive in schema fields_xsd1 Drilldown into LineFour in schema fields_xsd1 Drilldown into LineThree in schema fields_xsd1 Drilldown into LineTwo in schema fields_xsd1 Drilldown into LineOne in schema fields_xsd1 Drilldown into AddressLine in schema components_xsd1 Drilldown into CareOfName in schema fields_xsd1 Drilldown into AttentionOfName in schema fields_xsd1 Drilldown into FormatCode in schema fields_xsd1 Drilldown into ID in schema fields_xsd1 Drilldown into type in schema components_xsd1 Drilldown into languageCode in schema components_xsd1 Drilldown into AddressBaseType in schema components_xsd1XSD Diagram of AddressType in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="AddressType">
    <xsd:complexContent>
        <xsd:extension base="AddressBaseType">
            <xsd:sequence>
                <!-- <xsd:element ref="UserArea" minOccurs="0" /> -->
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID oagis:ID 0 unbounded
FormatCode oagis:FormatCode 0 (1)
AttentionOfName oagis:AttentionOfName 0 unbounded
CareOfName oagis:CareOfName 0 unbounded
AddressLine oagis:AddressLine 0 unbounded
LineOne oagis:LineOne 0 (1)
LineTwo oagis:LineTwo 0 (1)
LineThree oagis:LineThree 0 (1)
LineFour oagis:LineFour 0 (1)
LineFive oagis:LineFive 0 (1)
BuildingNumber oagis:BuildingNumber 0 (1)
BuildingName oagis:BuildingName 0 (1)
StreetName oagis:StreetName 0 (1)
Unit oagis:Unit 0 (1)
Floor oagis:Floor 0 (1)
PostOfficeBox oagis:PostOfficeBox 0 (1)
DeliveryPointCode oagis:DeliveryPointCode 0 unbounded
CitySubDivisionName oagis:CitySubDivisionName 0 unbounded
CityName oagis:CityName 0 (1)
CountrySubDivisionCode oagis:CountrySubDivisionCode 0 unbounded
CountryCode oagis:CountryCode 0 (1)
PostalCode oagis:PostalCode 0 (1)
Status oagis:Status 0 (1)
Preference oagis:Preference 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode oagis:languageCode Optional
type oagis:type (Optional)
Collapse Derivation Tree:
Collapse References:
oagis:Address, oagis:BillingAddress, oagis:OwnerAddress, oagis:RemitLocationPostalAddress
